WMR-CM
WEMAER

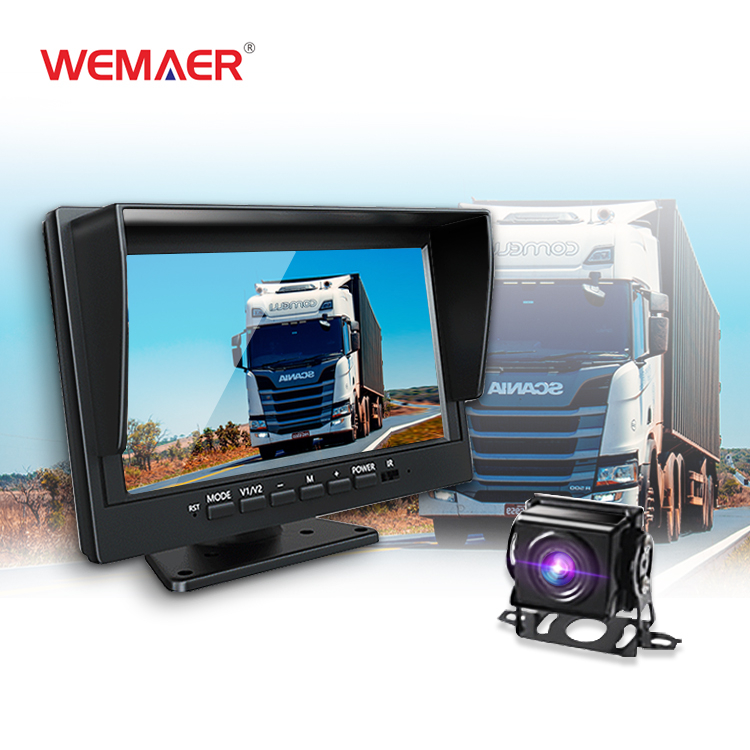

A camera mainly used to monitor the blind zones of vehicles, which transmits live images to the algorithm host, can identify pedestrians in blind zones and warn of pedestrian collisions in dangerous areas, while displaying them on the in-car monitor, thus significantly reducing the rate of traffic accidents.
| Project | Specifications | |
| Camera | Sensor size | 1/3"Color sensor |
| Signal to noise ratio | >60dB | |
| Minimum illumination | 0.001LUX | |
| Dynamic range | 82dB | |
| Video output | AHD720P/1080P | |
| Waterproof level | IP67 | |
| perspective | Vertical 130°， Level 180°- 230° | |
| Working voltage | 3.5-5.5V | |
| Working current | About 140mA | |
| The host | Operating voltage range | 9~16V |
| Working current | <600mA | |
| Standby current | <7mA | |
| Operating temperature range | -20°C | |
| Operating humidity range | 9~16V |
