WMR-CM
WEMAER

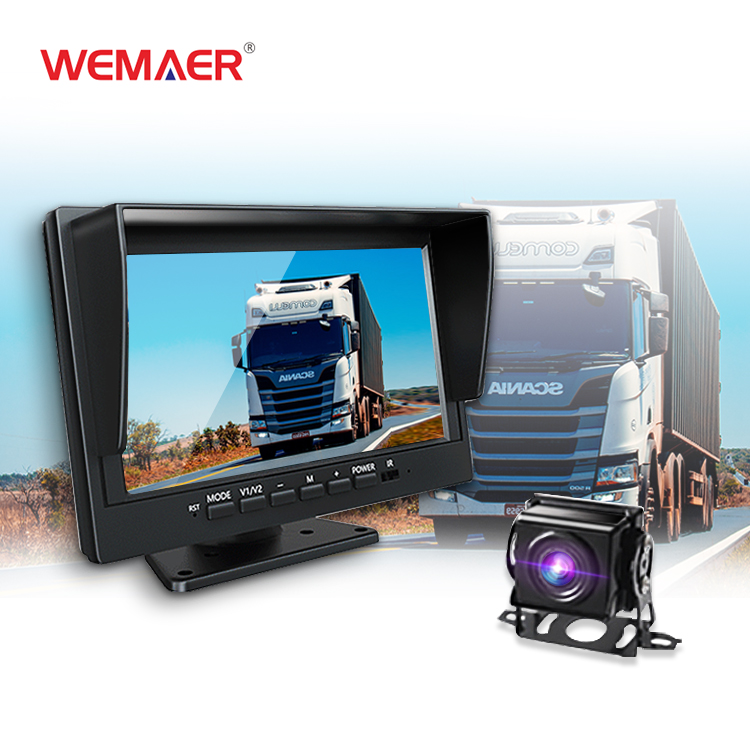

► 【Latest Digital Signal】RV backup camera with Unique digital signal dedicated dual antenna, power, transmission distance,stability, durability are improved by at least 50%. The rv car camera can send 1080P videos to the display via the stronger signal. The signal can reach 320ft in open area and working on vehicle range under135ft.
► 【Loop recording, Guideline】Trailer backup camera with super large HD 1080P 7” monitor. The image is super clear and any distortion is reduced to a minimum. Thus, you will get to enjoy a flawless parking and driving experience. The image could be flipped between mirror(rear view) and facing(front view). Backup lines optional to turns on/off. Back up camera built in record function and loop recording, continuous record when memory card is full and auto erase old files.
► 【Camera buitl in a magnetic base】 Camera can suck on any steel surface strongly, you can easily move the portable camera to anywhere.
| Project | Specifications | |
| Camera | Sensor size | 1/3"Color sensor |
| Signal to noise ratio | >60dB | |
| Minimum illumination | 0.001LUX | |
| Dynamic range | 82dB | |
| Video output | AHD720P/1080P | |
| Waterproof level | IP67 | |
| perspective | Vertical 130°， Level 180°- 230° | |
| Working voltage | 3.5-5.5V | |
| Working current | About 140mA | |
| The host | Operating voltage range | 9~16V |
| Working current | <600mA | |
| Standby current | <7mA | |
| Operating temperature range | -20°C | |
| Operating humidity range | 9~16V |
