T7
Wemaer

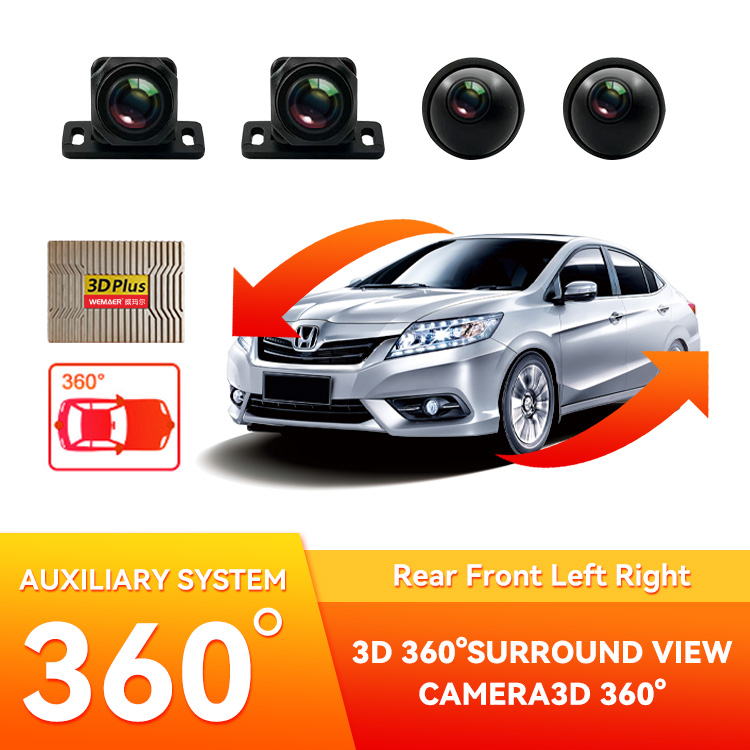

360 panoramic around view monitoring system:
*Support 2D/3D view mode switch and front/rear/left/right /limit/front limit etc. view mode switch
*Device will look around for 3 times after start-up
*Support video output in AHD, CVBS, VGA and HDMI format
*Optional function supports the installation of built-in single and double CAN modules
*4 ways real-time driving video recording, video files saved in AHD format
*Support one-click calibration for a variety of cloth, and no manual marking is required, and there is no blind spot on the ground
| Product specification | ||
| Project | Specifications | |
| Camera | Sensor size | 1/3"Color sensor |
| Signal to noise ratio | >60dB | |
| Minimum illumination | 0.001LUX | |
| Dynamic range | 82dB | |
| Video output | AHD720P | |
| Waterproof level | IP67 | |
| perspective | Vertical 130°， Level 180°- 230° | |
| Working voltage | 3.5-5.5V | |
| Working current | About 140mA | |
| The host | Operating voltage range | 9~16V |
| Working current | <600mA | |
| Standby current | <7mA | |
| Operating temperature range | -20℃〜75℃ | |
| Operating humidity range | 40%〜80% | |
