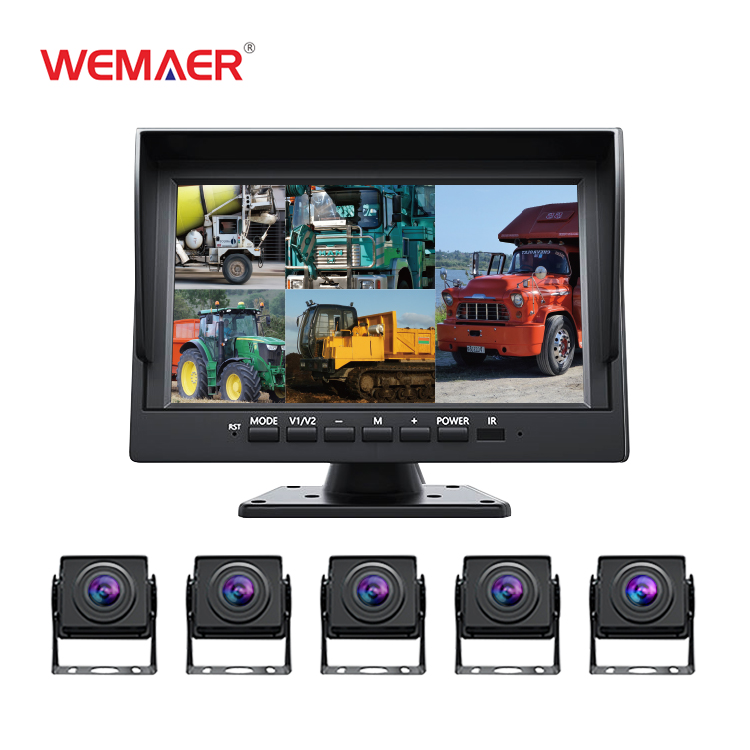

WMR-CM-5
WEMAER
(1)High-transmittance glass lens, clearer picture quality
(2)AHD format signal, 720p / 1080p resolution optional
(3)F1. 2 /F1. 5 / F 1.6 / F 1.8 / F 2.0 aperture is optional, large aperture can improve the light input, and the night vision effect is better
Aperture is optional, large aperture increases the amount of light entering, and the night vision effect is better
(4)120° wide-angle lens monitoring, adjustable lens angle, more comprehensive monitoring
(5)Camera optional metal shell, heat dissipation faster and more durable
(6)Using unique glue filling technology, waterproof level IP68
(7)The camera has a variety of styles to choose from, and you can also choose LED and other configurations
Project | Specifications | |
Camera | Sensor size | 1/3"Color sensor |
Signal to noise ratio | >60dB | |
Minimum illumination | 0.001LUX | |
Dynamic range | 82dB | |
Video output | AHD720P/1080P | |
Waterproof level | IP67 | |
perspective | Vertical 130°, Level 180°- 230° | |
Working voltage | 3.5-5.5V | |
Working current | About 140mA | |

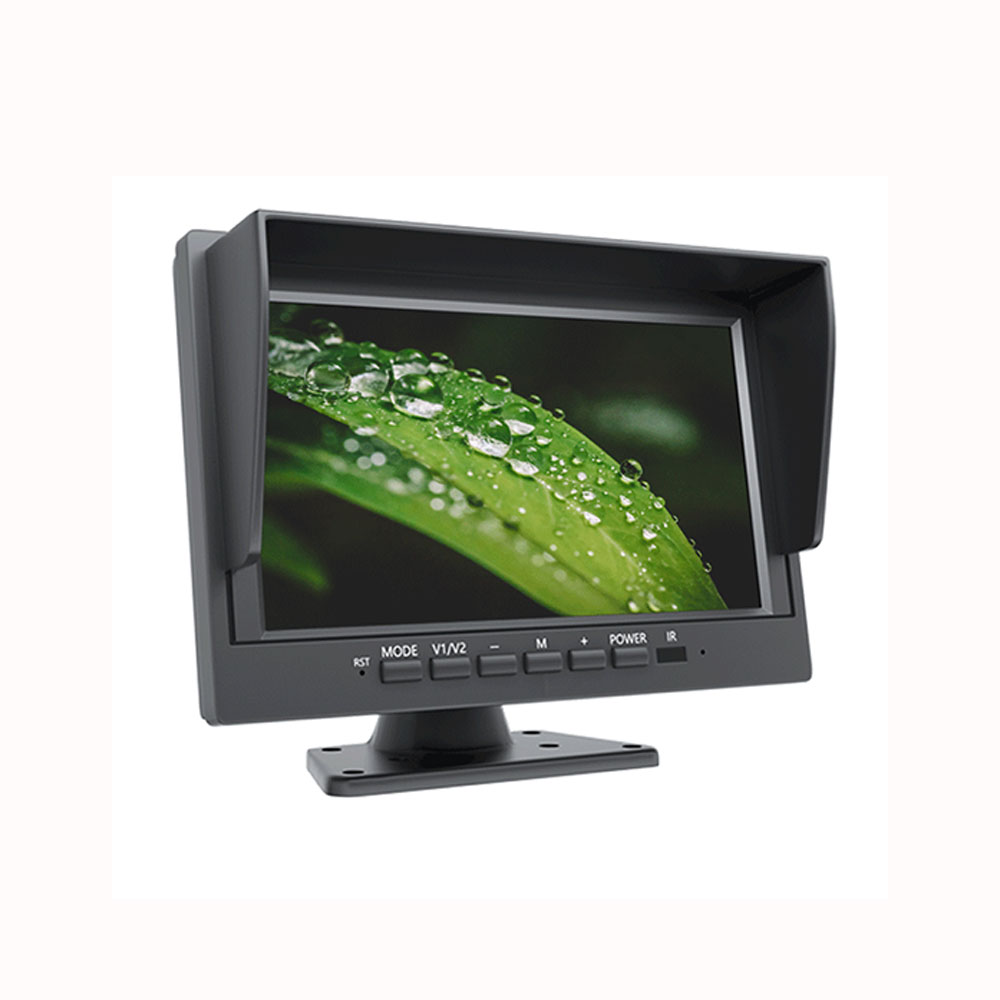

The host | Operating voltage range | 9~16V |
Working current | <600mA | |
Standby current | <7mA | |
Operating temperature range | -20°C | |
Operating humidity range | 9~16V |
