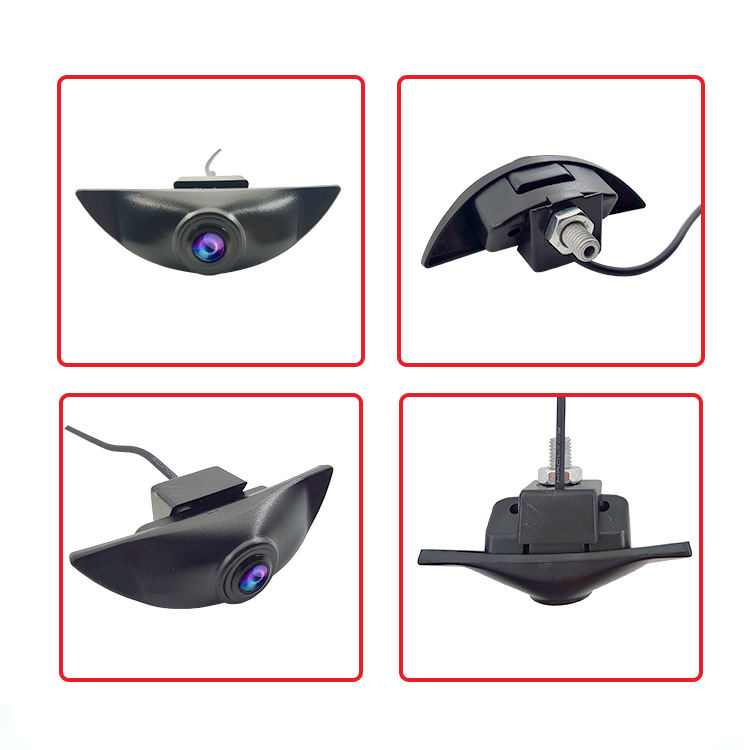

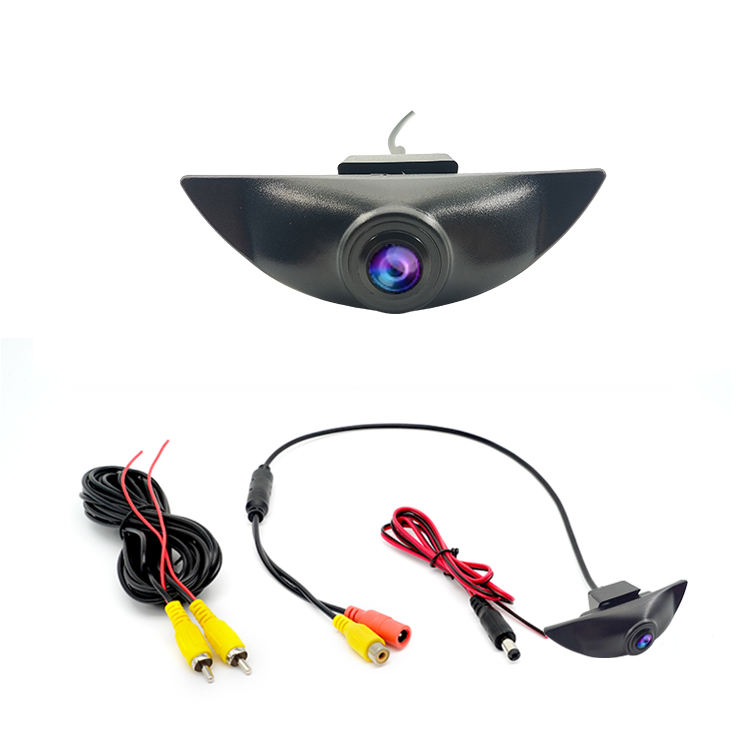

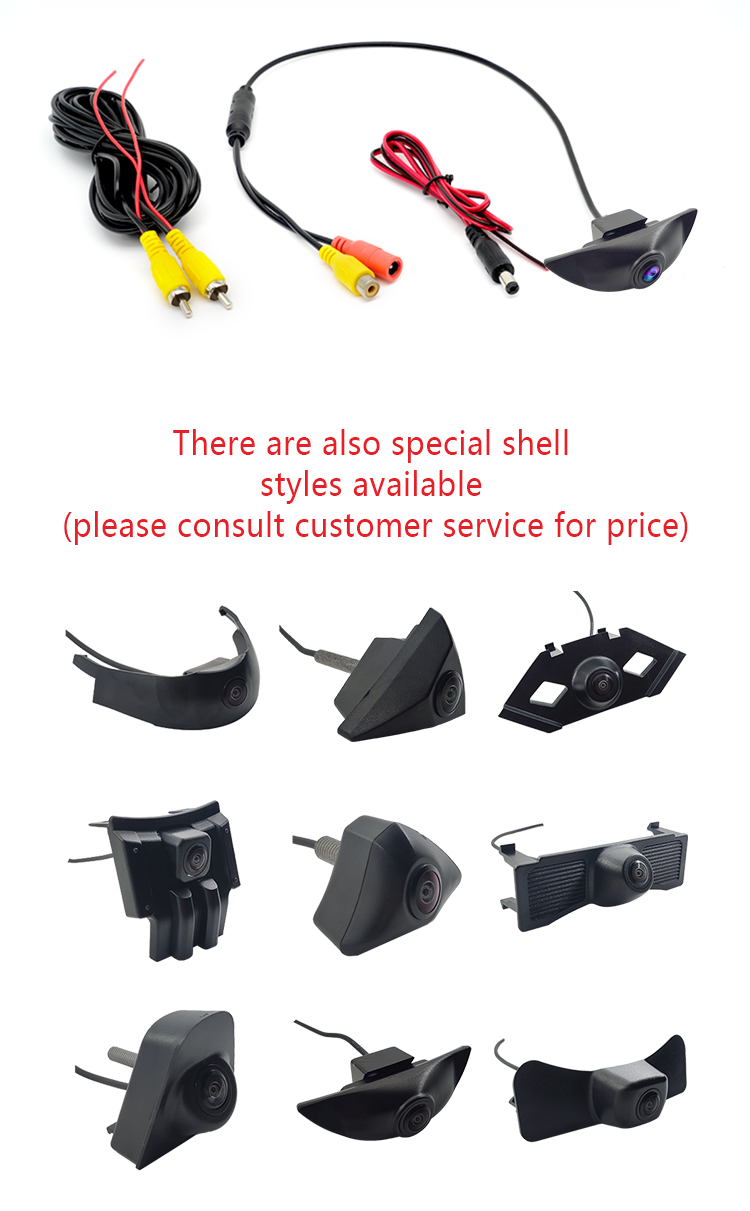

Front Car Camera For Universal Japanese Model
Wemaer
As the main environmental perception sensor, the camera plays a very important role. It can achieve 360 ° overall visual perception and make up for the defects of radar in Object detection. It is the sensor closest to human vision. Therefore, the onboard camera is one of the key devices in the field of autonomous driving.

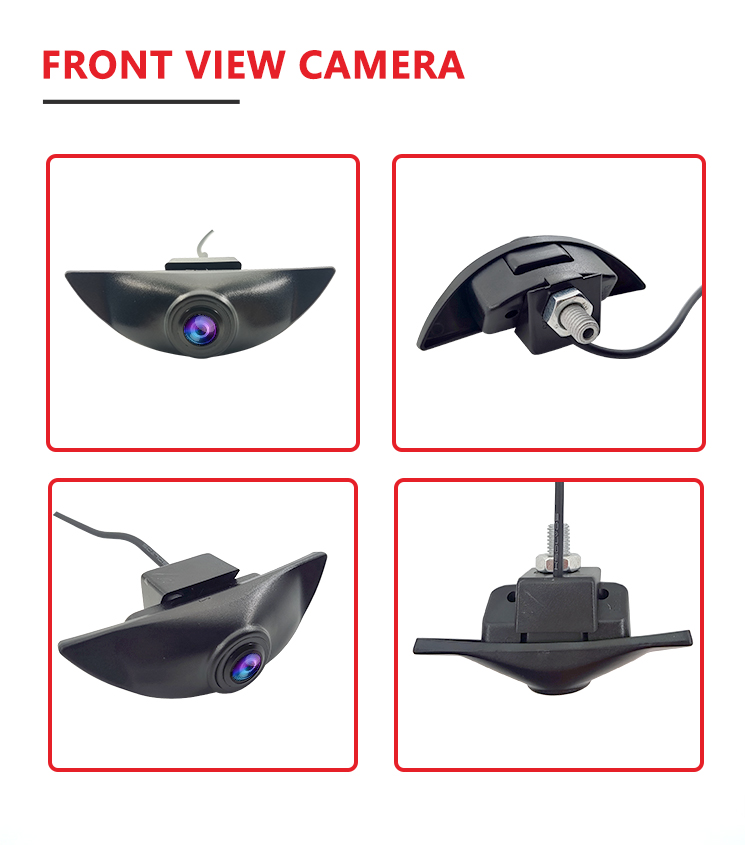

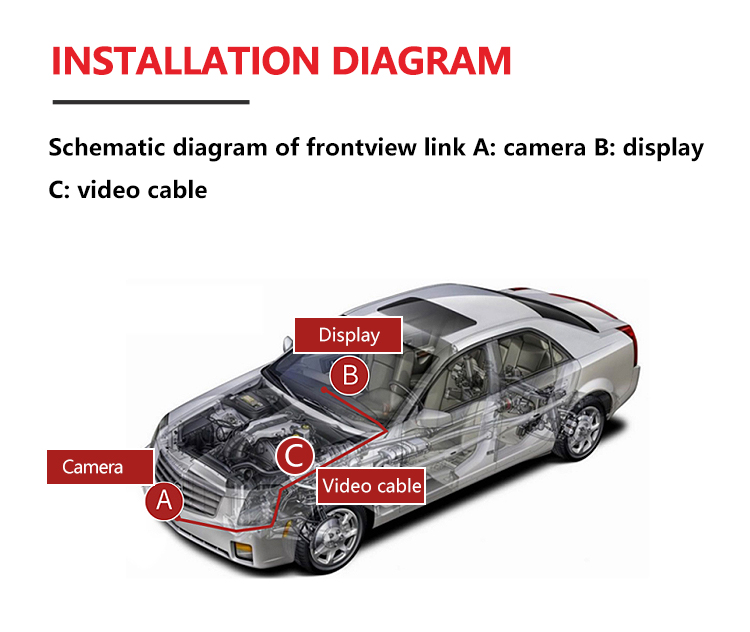

Front view camera: mainly installed on the front windshield to achieve visual perception and recognition functions for driving. It can be divided into front view main camera, front view narrow angle camera, and front view wide angle camera according to their functions.
| Image Sensor | PV4109 1/4" CMOS | Resolution | 720 TV lines |
| TV System | NTSC/PAL | Sensing area | 3.5952*2.0272mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.1Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than >42dB |

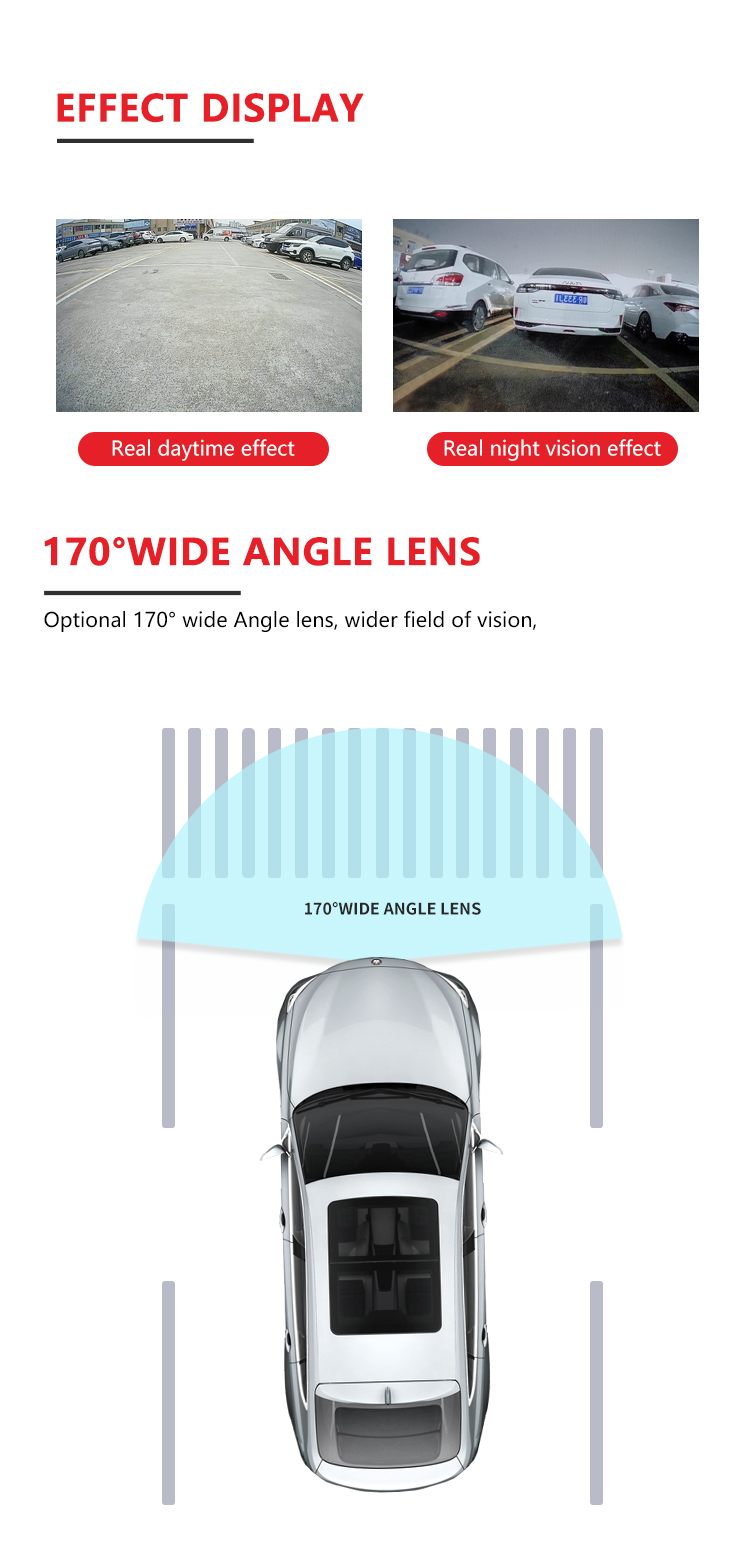

| IR LEDs | No | Lens angle | 110 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |

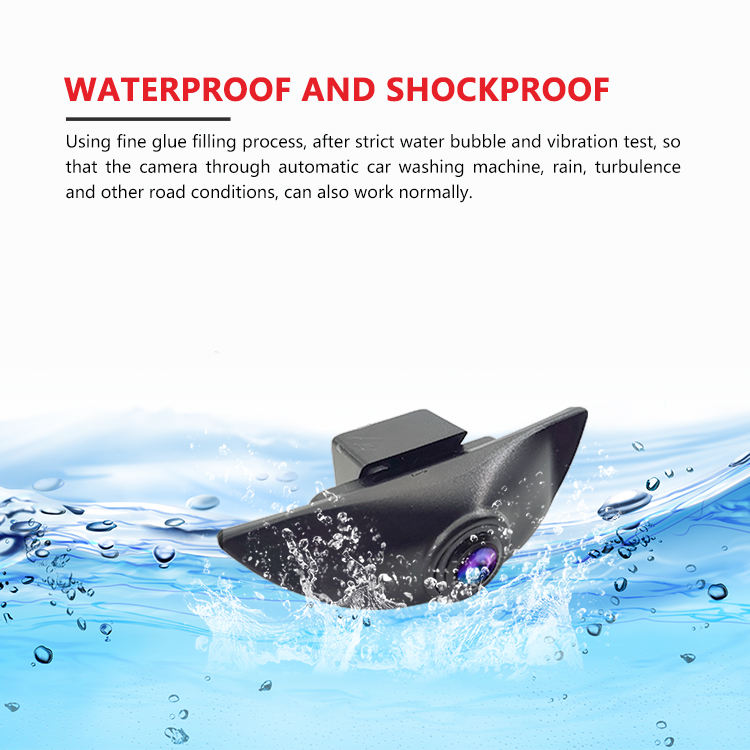

| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 1280(H)*720(V) | Warranty | 12 months |
