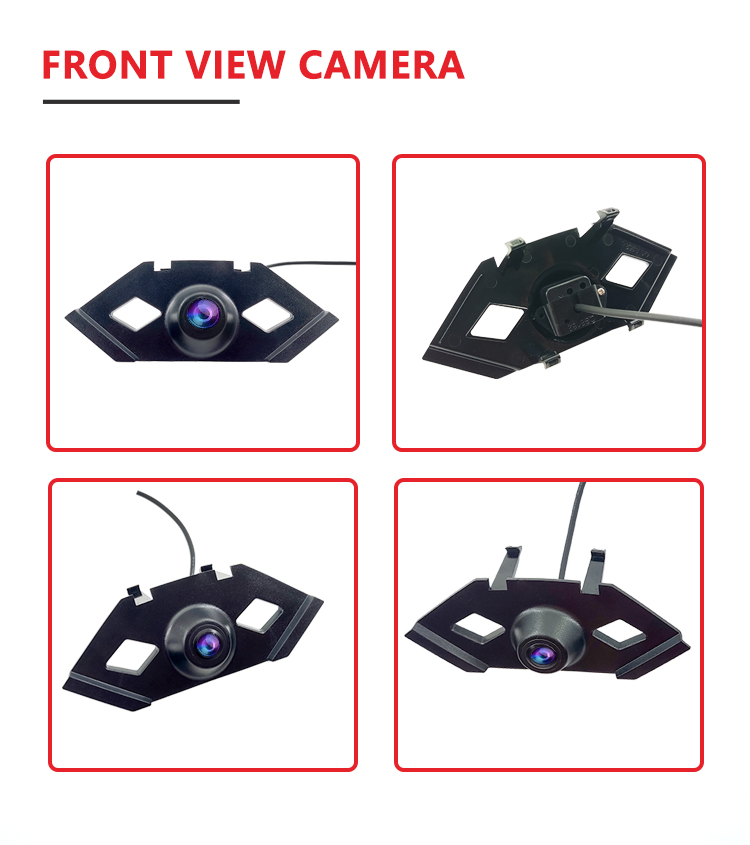

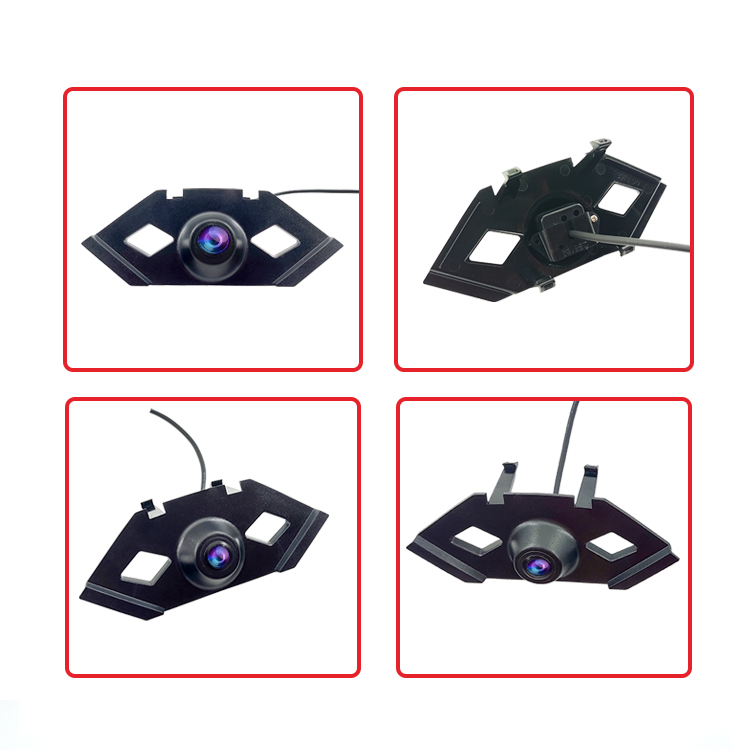

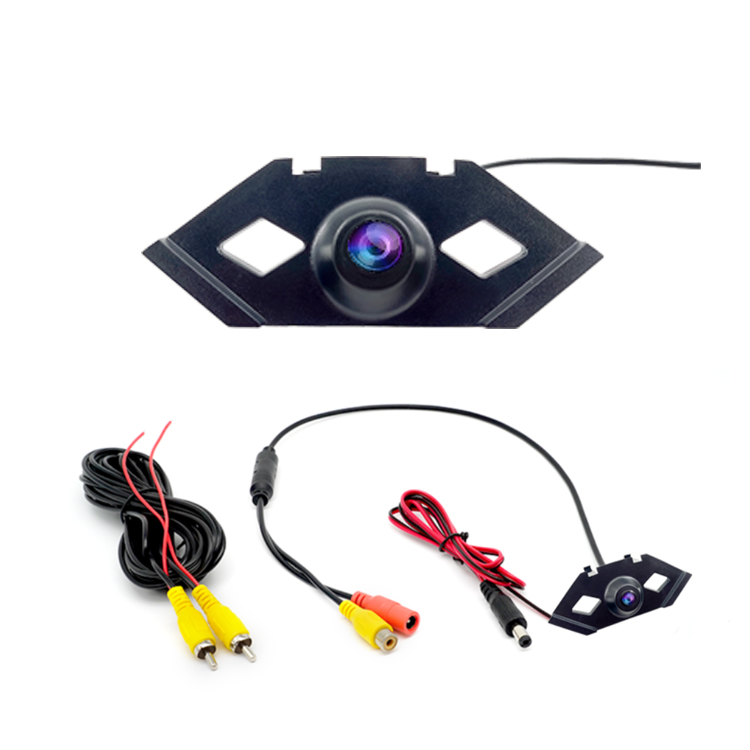

Front Car Camera For Volkswagen Tiguan L
Wemaer

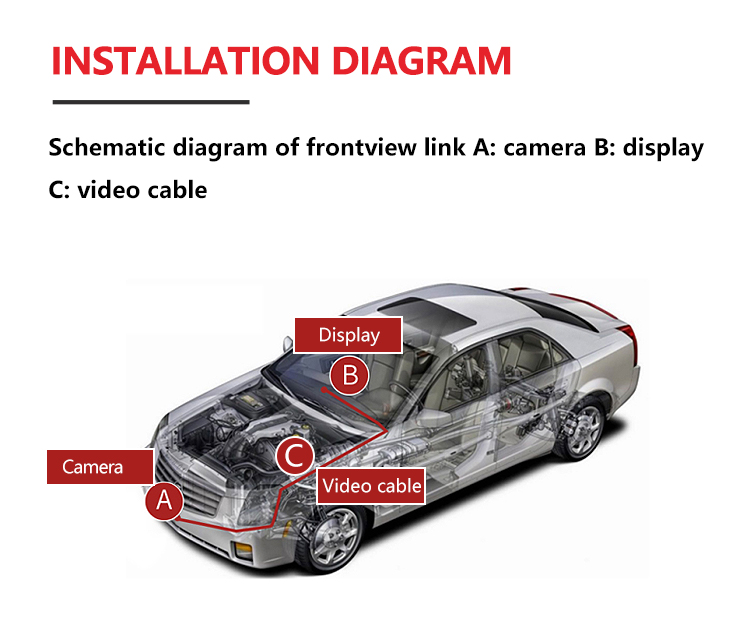

It can be installed under the front license plate frame or on the license plate frame and fixed with two screws on the license plate. Some can also be installed on the right side of the front of the car, so that the blind spot on the right side can be seen. Some can be installed under the left and right rearview mirrors, so that the blind spot can be seen in front. Generally, if the front view camera is installed in the middle, it can be made into a reference line with a reverse ruler, Front view cameras installed elsewhere do not require a reverse scale reference line.
| Image Sensor | PV4109 1/4" CMOS | Resolution | 720 TV lines |
| TV System | NTSC/PAL | Sensing area | 3.5952*2.0272mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.1Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than >42dB |
| IR LEDs | No | Lens angle | 110 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |

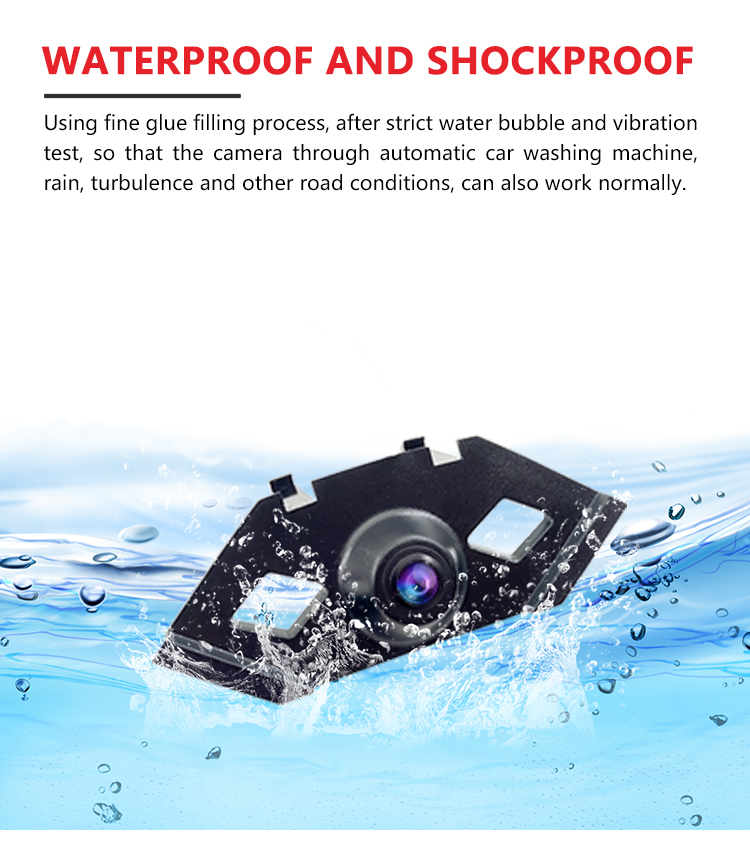

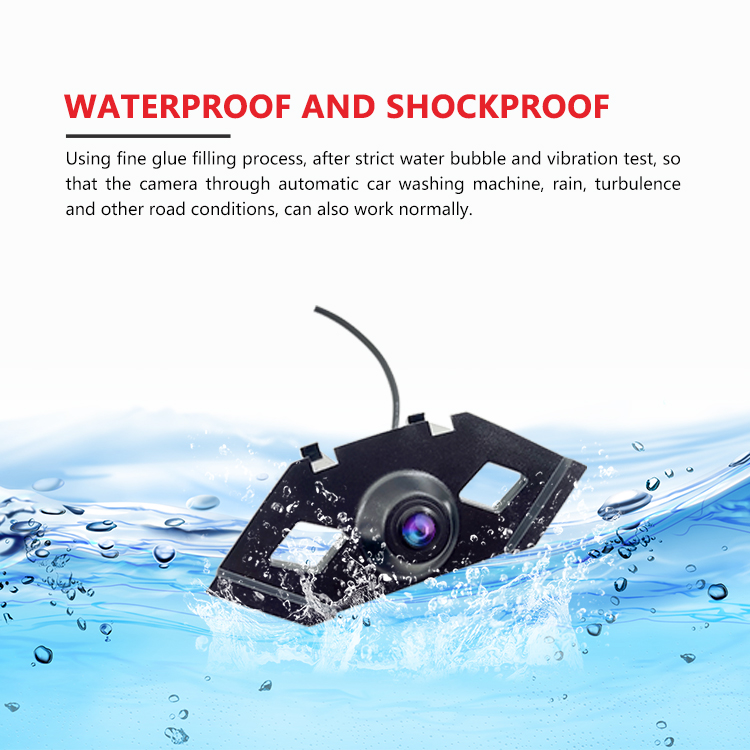

| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 1280(H)*720(V) | Warranty | 12 months |
