WMR-007 CVBS
Wemaer
*Camera style optional:500+ camera style

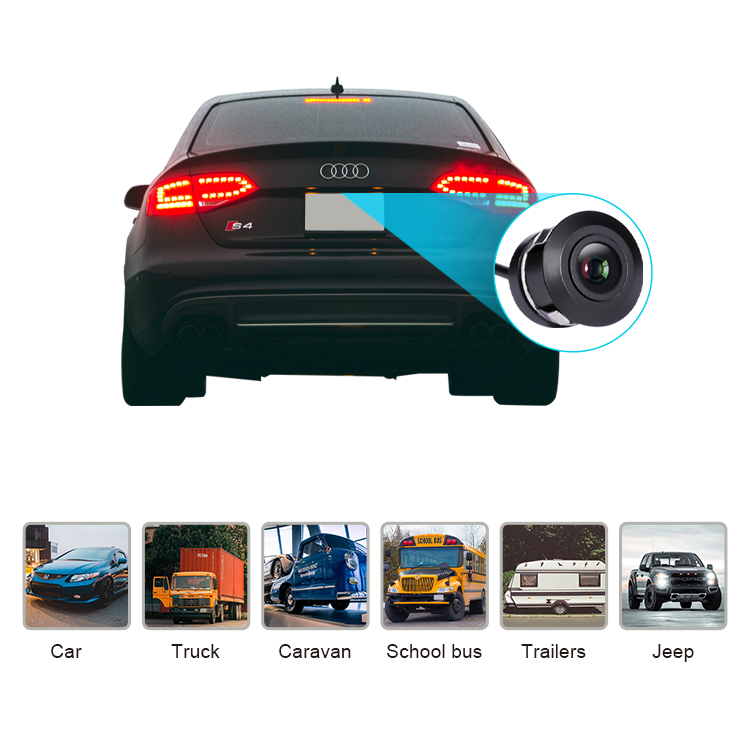

The function of the rear view camera under the reversing mirror is as follows:
1. Panoramic imaging: used to assist in parking and observe blind spots.
2. Observation of vehicle distance: Used to observe the distance from vehicles behind the vehicle while driving. It is used to observe the road conditions behind the vehicle during reversing and for drivers to observe the overall condition of the vehicle while driving.
| Image Sensor | C030 1/6.25" CMOS | Resolution | 480 TV lines |
| TV System | NTSC/PAL | Sensing area | 3.030*2.725mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.5Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than 40dB |
| IR LEDs | No | Lens angle | 85 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |
| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 640(H)*480(V) | Warranty | 12 months |
