WMR-008 CVBS
Wemaer
*Camera style optional:500+ camera style
How to determine the reverse image
1. During normal driving, the ordinary reverse image 360 does not have clear markings at a specific distance, and the image changes with installation height and angle. When installing this reversing image, it is recommended to light it up on the bumper, which can provide a good reference for reversing and better grasp the distance between vehicles.
2. No reverse trajectory image: This reverse image is still relatively clear, but without a reverse help line, it is not very useful for novice drivers. It is not recommended for novice drivers to install.
3. There will be virtual line road guidance on the 360 display screen of the reverse image function. Reversing is quite simple and convenient, making it easy for novice drivers to quickly and proficiently master.
| Image Sensor | C030 1/6.25" CMOS | Resolution | 480 TV lines |
| TV System | NTSC/PAL | Sensing area | 3.030*2.725mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.5Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than 40dB |
| IR LEDs | No | Lens angle | 85 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |

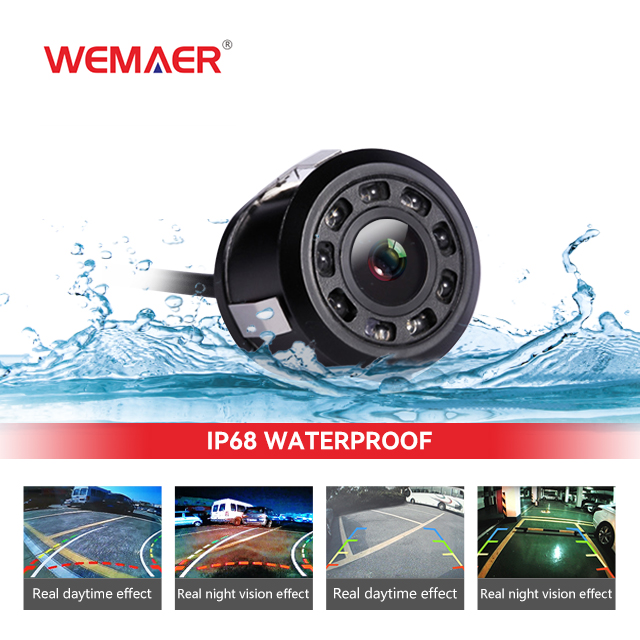

| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 640(H)*480(V) | Warranty | 12 months |
