WMR-003 CVBS
Wemaer
*Camera style optional:500+ camera style

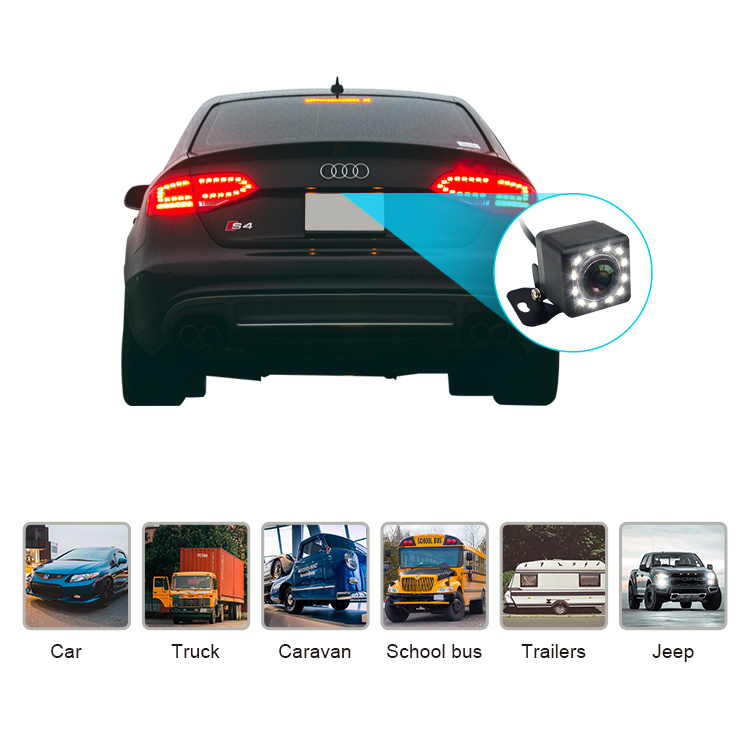

The main purpose is to detect the surrounding environment of the vehicle body, provide drivers with environmental information, and to some extent achieve auxiliary driving functions, including adaptive cruise control, lane departure warning, pedestrian vehicle collision warning, etc.
| Image Sensor | C030 1/6.25" CMOS | Resolution | 480 TV lines |
| TV System | NTSC/PAL | Sensing area | 3.030*2.725mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.5Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than 40dB |
| IR LEDs | No | Lens angle | 85 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |
| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 640(H)*480(V) | Warranty | 12 months |
