WMR-010 CVBS
Wemaer
*Camera style optional:500+ camera style

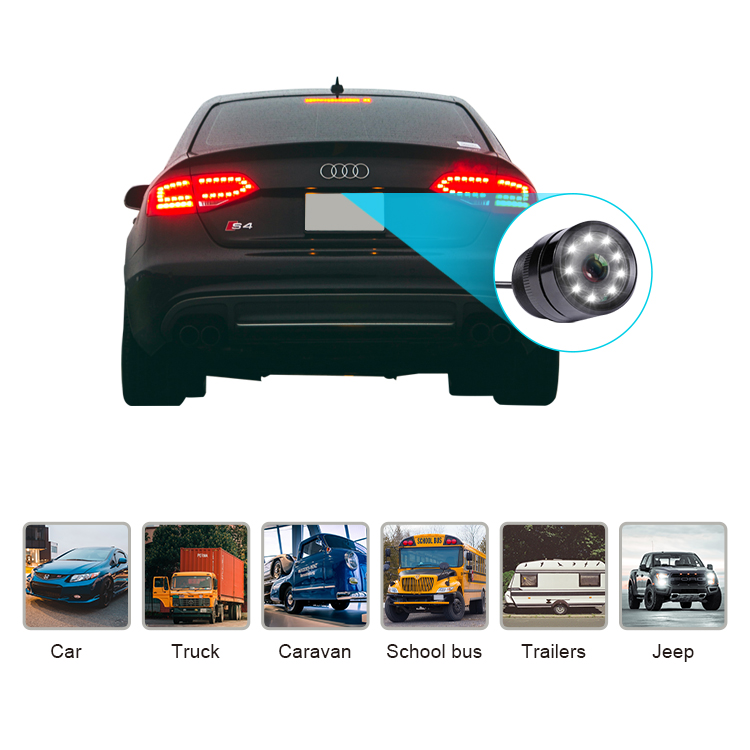

The rear view camera is an on-board auxiliary safety device, usually located in the center or on both sides of the rear of the vehicle, used to provide real-time images of the rear during driving. The rear view camera can enable the driver to have a clearer understanding of the situation behind the vehicle, avoiding accidents caused by not being able to see the rear of the vehicle.
What is a rear view camera
A rear view camera refers to a device located at the rear of a vehicle that uses the camera to capture and record the rear of the vehicle. The captured images or videos are transmitted in real-time to the interior display for display, helping the driver observe the surrounding environment of the vehicle and prevent traffic accidents. The rear view camera was first used in business vehicles and high-end luxury cars, and has now become one of the popular car configurations.
| Image Sensor | C030 1/6.25" CMOS | Resolution | 480 TV lines |
| TV System | NTSC/PAL | Sensing area | 3.030*2.725mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.5Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than 40dB |
| IR LEDs | No | Lens angle | 85 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |
| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 640(H)*480(V) | Warranty | 12 months |
