WMR-018 CVBS
Wemaer
*Camera style optional:500+ camera style
The solution to blurry reversing images is as follows:
1. Replacing the camera in some car models is older, so you can replace the camera with a higher pixel one, which can solve
2. Remove the water vapor from the camera. If there is water vapor in the camera, it can be removed using a hot air blower, and the reversing image will be clearer afterwards.
3. Sometimes adjusting the screen resolution can make the reversing image clearer.
4. Wipe off the stains on the surface of the camera. If the camera is found to be very dirty, clean it and wipe it with an alcohol cloth.
| Image Sensor | C030 1/6.25" CMOS | Resolution | 480 TV lines |
| TV System | NTSC/PAL | Sensing area | 3.030*2.725mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.5Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than 40dB |
| IR LEDs | No | Lens angle | 85 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |

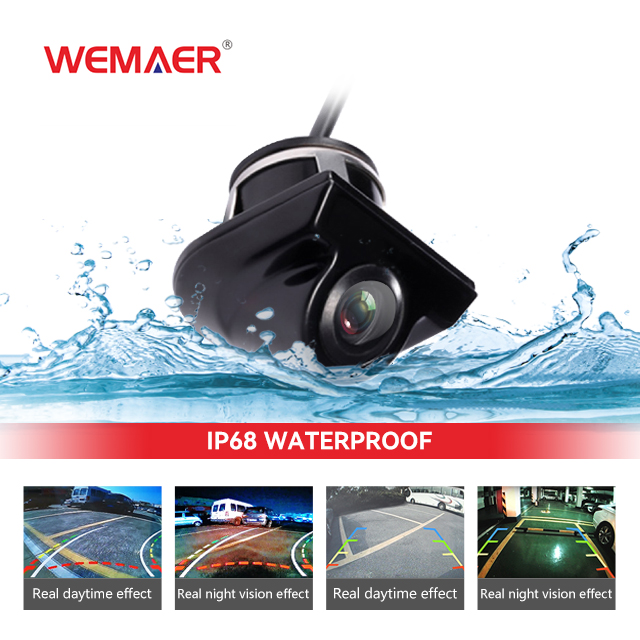

| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 640(H)*480(V) | Warranty | 12 months |
