WMR-020 CVBS
Wemaer
*Camera style optional:500+ camera style

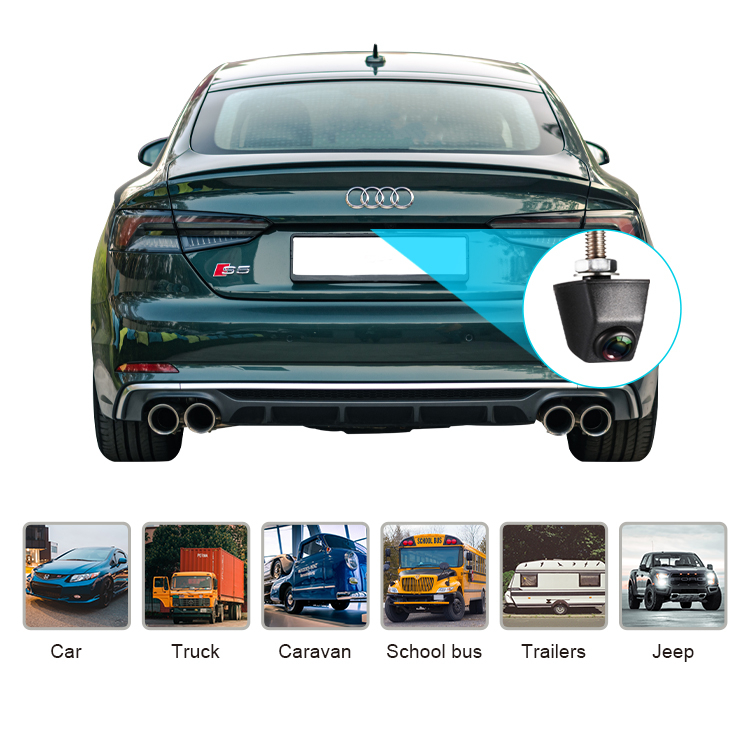

The rearview mirror camera is a type of automotive accessory that is installed at the rear of the car and combined with the display screen installed inside the car to form a complete reverse imaging system. It can provide a panoramic view of reversing and is used to display blind spots when reversing and changing lanes.
The rear view camera is a tool for the driver to directly obtain external information such as the rear, side, and bottom of the car while sitting in the driver's seat. For the convenience of driver operation, to prevent driving safety accidents and ensure personal safety.
| Image Sensor | C030 1/6.25" CMOS | Resolution | 480 TV lines |
| TV System | NTSC/PAL | Sensing area | 3.030*2.725mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.5Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than 40dB |
| IR LEDs | No | Lens angle | 85 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |
| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 640(H)*480(V) | Warranty | 12 months |
