WMR-019 CVBS
Wemaer

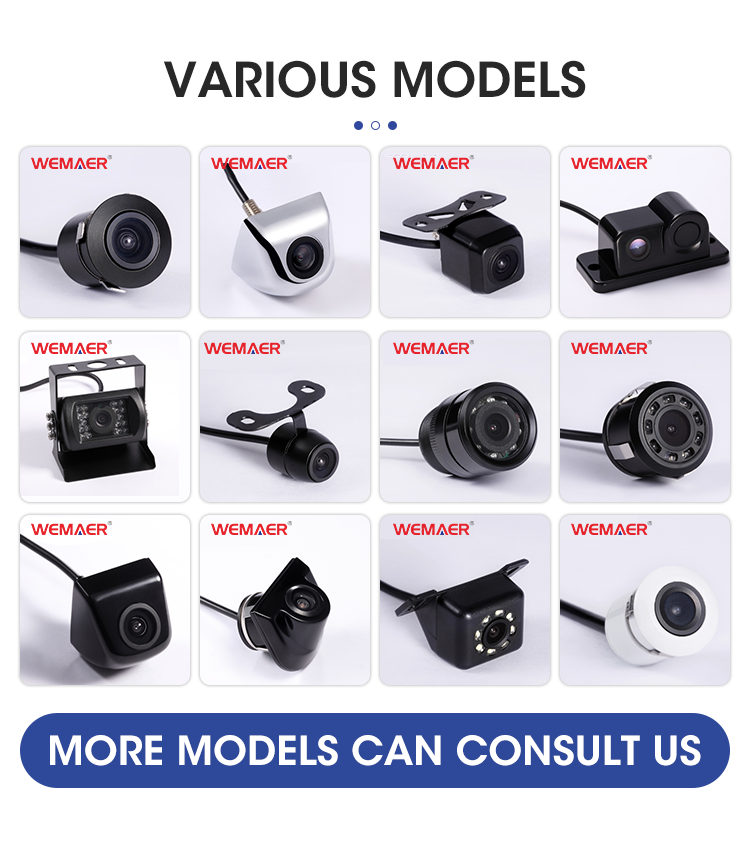

*Camera style optional:500+ camera style
The front view camera is an in car camera installed in front of the car, which is used to turn on when parking and entering the parking space. It can visually see the obstacles in front of the car, making parking and entering the space more convenient. The front view camera is usually the original image, which can be made into a mirror image of the rear view camera with or without a reverse scale line.
| Image Sensor | C030 1/6.25" CMOS | Resolution | 480 TV lines |
| TV System | NTSC/PAL | Sensing area | 3.030*2.725mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.5Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than 40dB |
| IR LEDs | No | Lens angle | 85 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |

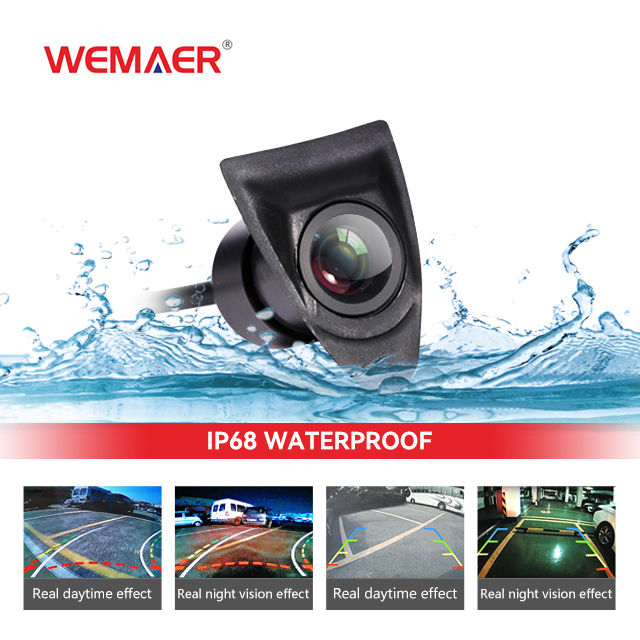

| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 640(H)*480(V) | Warranty | 12 months |
