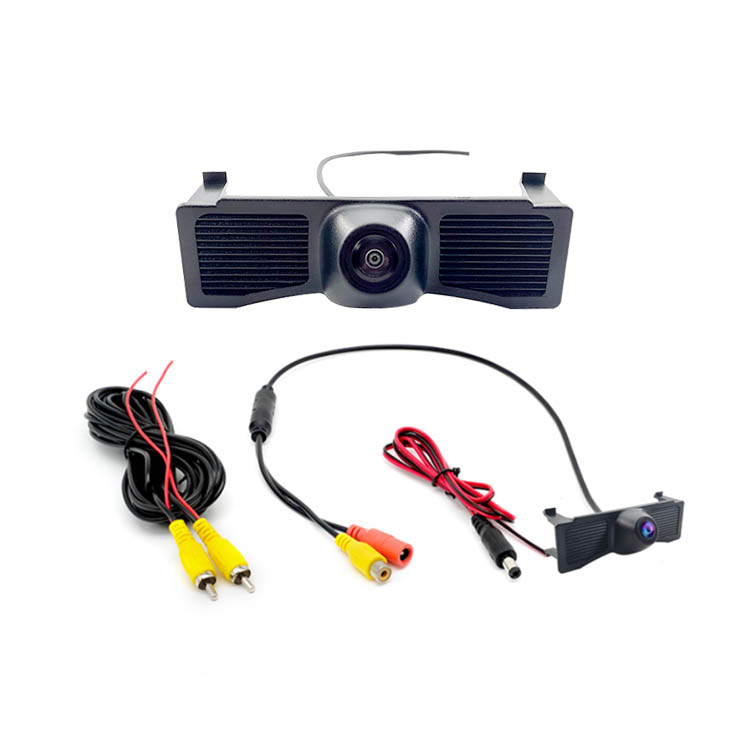

Front Car Camera For Toyota Land Cruiser
Wemaer
One is to increase the range of sight and eliminate blind spots for drivers. For example, rearview when reversing. Another type is driving records, which are used to prevent collisions or accidents, making it easier to distinguish responsibilities. With the development of technology, cars may use more cameras. For example, active avoidance systems.
The functions of the front view camera used include lane departure warning (LDW), and a warning when the front view camera detects that the vehicle is about to deviate from the lane line.
Pedestrian collision warning PCW, warning when the current camera detects a possible collision with a marked pedestrian ahead.
Lane keeping assistance LKA, when the current camera detects that the vehicle is about to deviate from the lane line, notifies the control center to issue instructions and correct the direction of travel.
Forward collision warning FCW, which issues an alarm when the front camera detects a close proximity to the vehicle in front.
| Image Sensor | C030 1/6.25" CMOS | Resolution | 480 TV lines |
| TV System | NTSC/PAL | Sensing area | 3.030*2.725mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.5Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than 40dB |
| IR LEDs | No | Lens angle | 85 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |
| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 640(H)*480(V) | Warranty | 12 months |
