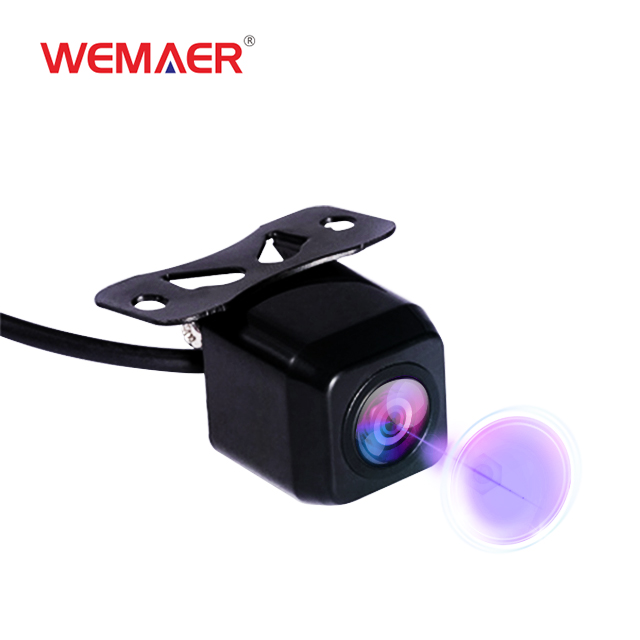

WMR-015 CVBS
Wemaer
*Camera style optional:500+ camera style
The left and right rearview mirrors of a car are convenient for the driver to observe the road conditions behind the left and right sides of the car through the rearview mirrors for the next step of operation. However, traditional physical rearview mirrors have a small viewing angle, and a small field of view can lead to accidents caused by misjudgment by the driver. Now that we can solve this problem, how can we solve it? We can install cameras in the left and right rearview mirrors of the car, and use the signals output by the cameras to determine the road conditions and carry out correct driving operations.
What is the function of the left and right rearview mirror cameras? We can eliminate the hidden dangers brought by traditional rearview mirrors by installing cameras in the left and right rearview mirrors of cars. The left and right rearview mirror cameras of the car have a large angle and an increased field of view for better driving operations. It can also assist us in parking when reversing.
| Image Sensor | C030 1/6.25" CMOS | Resolution | 480 TV lines |
| TV System | NTSC/PAL | Sensing area | 3.030*2.725mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.5Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than 40dB |
| IR LEDs | No | Lens angle | 85 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |
| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 640(H)*480(V) | Warranty | 12 months |
