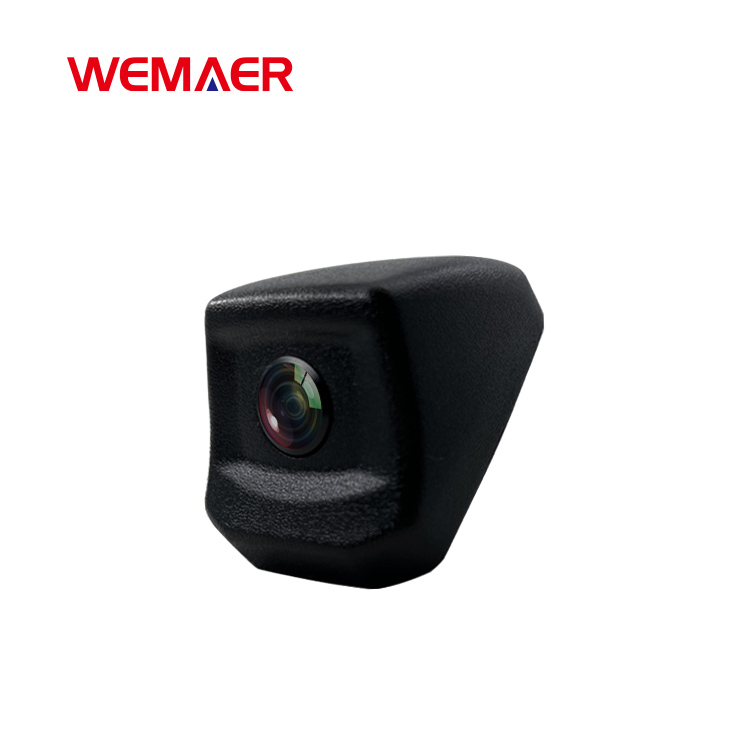

For HiLux
Wemaer
We can help you create your customized brand
*Camera style optional:500+ camera style
In recent years, with the upgrading of automotive intelligence, various car companies are upgrading from low-level autonomous driving to high-level. Autonomous driving will put forward higher requirements for active safety functions such as vehicle safety, pedestrian safety, and driver monitoring.
From the car shows in the past two years, we can see that there are more and more in car cameras in various models. But basically, there will be at least one ADAS front view camera and four surround view cameras in the basic configuration. If combined with the increasingly valued driver monitoring cameras in recent years, it can be foreseen that in the coming years, at least 6 cameras will be needed in cars, and the market prospects are enormous.
| Image Sensor | SC1345 1/4.5" CMOS | Resolution | 720 TV lines |
| TV System | NTSC/PAL | Sensing area | 4.110*2.874mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.01Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than 38dB |
| IR LEDs | No | Lens angle | 105 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |

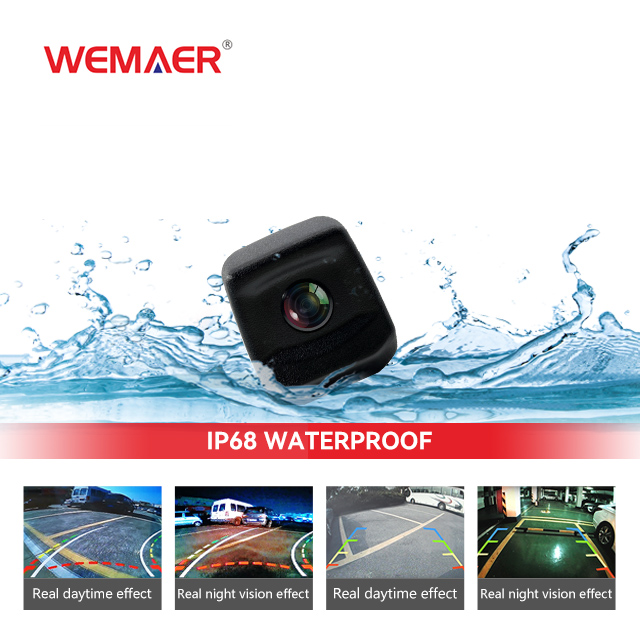

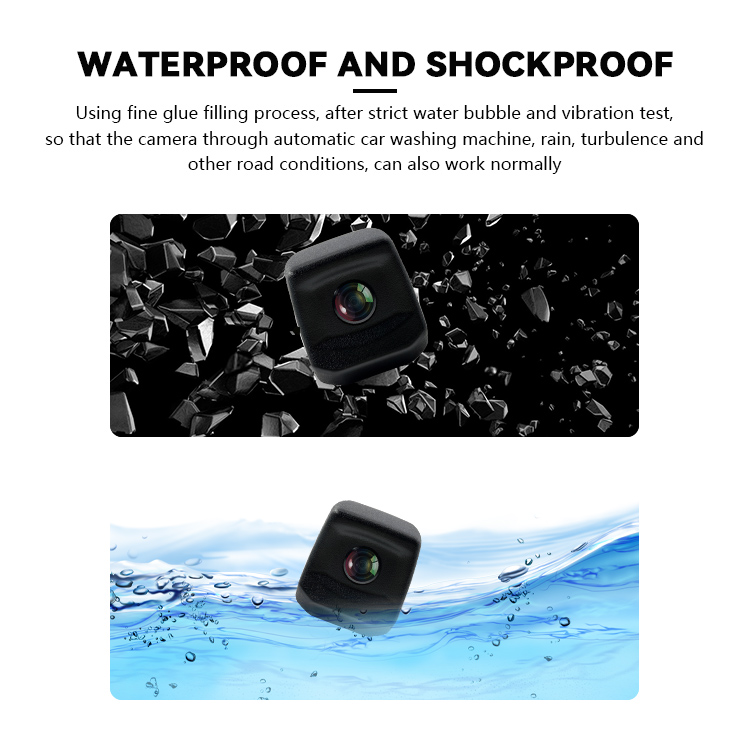

| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 1280(H)*720(V) | Warranty | 12 months |
