For HiLux
Wemaer
We can help you create your customized brand
*Camera style optional:500+ camera style

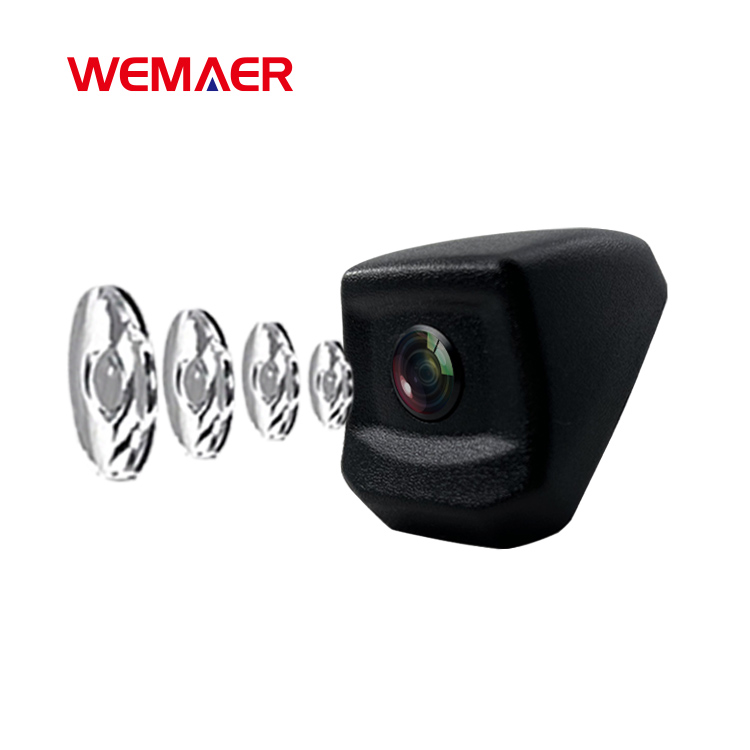

Car mounted cameras are required to operate continuously in environments ranging from -40 ℃ to 85 ℃, be unaffected by moisture immersion, be anti magnetic and anti seismic, and have a service life of 8-10 years. In addition, for safety reasons, the car mounted camera needs to ensure its operation even if the power supply is interrupted for a short period of time.
In addition, performance such as high dynamic range, night vision, and LED flicker suppression will continue to be popularized. At present, the functions of car mounted cameras require them to have the following performance: car mounted cameras often also need to have night vision function, which can suppress noise during low illumination photography, and still have excellent performance in low light conditions. Expand the horizontal viewing angle to 25 °~135 ° to achieve high resolution of wide angle and surrounding areas of the image.
| Image Sensor | PV4109 1/4" CMOS | Resolution | 720 TV lines |
| TV System | NTSC/PAL | Sensing area | 3.5952*2.0272mm |
| Sync System | internal | Video output | 1.0Vp-p, 75Ω |
| Minimum illumination | 0.1Lux | Electronic shutter | Auto |
| White balance | Auto | S/N ratio | Better than >42dB |
| IR LEDs | No | Lens angle | 110 degree |
| Video color | Colorful | Operation temperature | -20° ~+70° |
| Waterproof class | IP68 | Storage temperature | -30° ~+80° |
| Effective pixels | 1280(H)*720(V) | Warranty | 12 months |
