Guidline Waterproof HD Mini Vehicle Front Camera

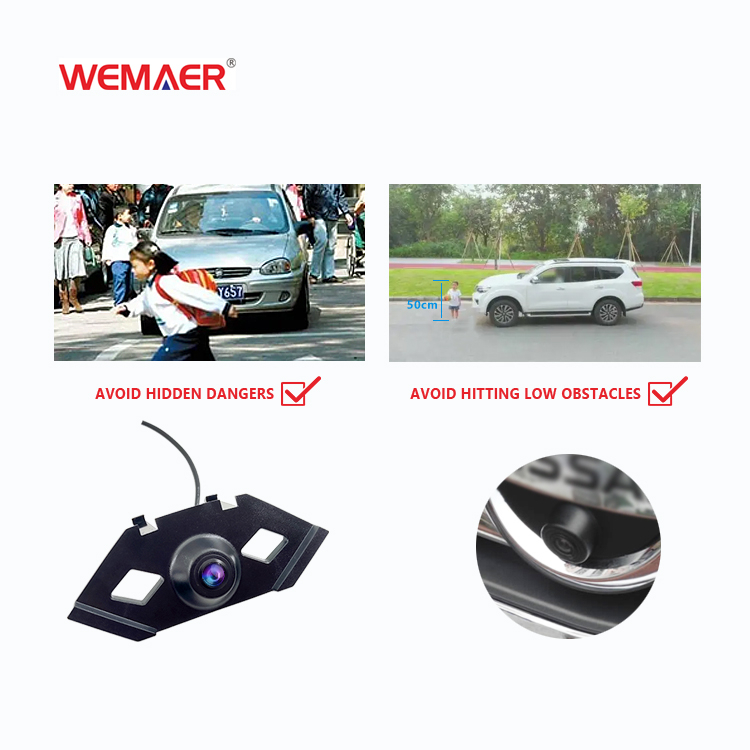

The function of a car front facing camera:

1. Increase the range of sight and eliminate the driver's blind spot. For example, rearview when reversing;

2. Keep good driving records to prevent collisions or accidents, making it easier to distinguish responsibilities. With the development of technology, cars are increasingly using cameras, such as active avoidance systems.







   Image Sensor	B30 1/3" CMOS	Resolution	480 TV lines
   TV System:	NTSC/PAL	Sensing area	6.202*4.101mm
   Sync System	internal	Video output	1.0Vp-p, 75Ω
   Minimum illumination	0.1Lux	Electronic shutter	Auto
   White balance	Auto	S/N ratio	Better than >46dB
   IR LEDs	No	Lens angle	130 degree
   Video color	Colorful	Operation temperature	-20° ~+70°
   Waterproof class	IP68	Storage temperature	-30° ~+80°
   Effective pixels	652(H)*582(V)	Warranty	12 months
