WMR-002 MOVING LINE
WEMAER
Reverse view camera (with track)

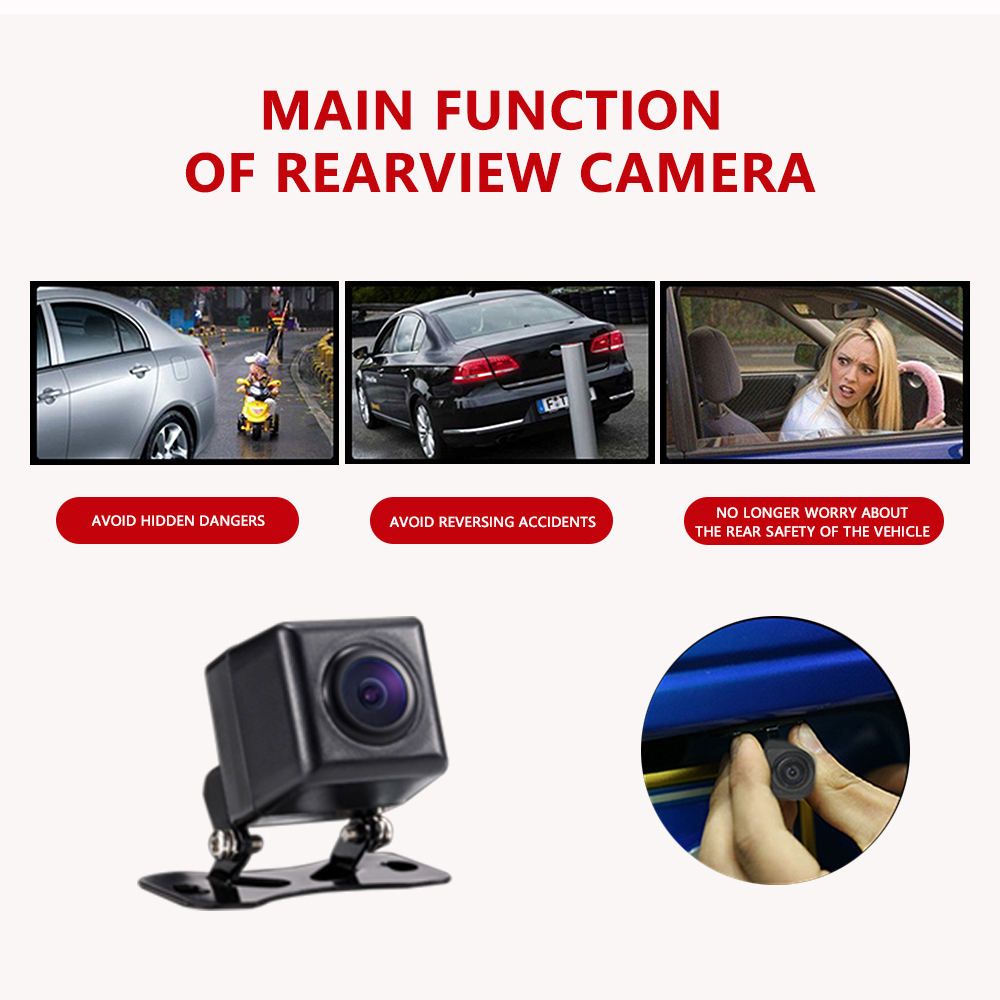

Main function of rearview camera
【170° Wide Angle Optical Glass HD Lens】The lens is the core component of the reverse camera for car. The HD lens used in PMD2A-S wide angle backup camera is very different from ordinary lens in appearance, it has a larger aperture and a stronger sense of technology. High transmittance glass, fish eye appearance, F1.5 aperture, all these features directly determine the wide angle, maximum output pixels and night vision performance of the license plate camera.
【Sturdy Alloy Housing】First put the lens and PCB in the alloy housing, then fill and seal with Nano waterproof glue, in any weather, high or low temperature, reverse camera is waterproof for lifetime. In the unlikely event of water coming in, we will provide a brand new backup cam for you.
| Image Sensor C030 1/6.25" CMOS |
| TV System: NTSC/PAL |
| Sync System internal |
| Minimum illumination 0.5Lux |
| White balance Auto |
| IR LEDs No |
| Video color Colorful |

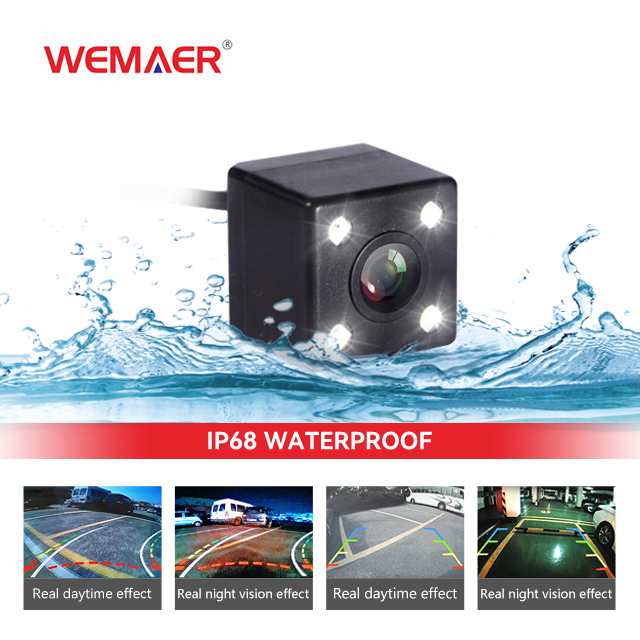

| Waterproof class IP68 |
| Effective pixels 640(H)*480(V) |
| Resolution 480 TV lines |
| Sensing area 3.030*2.725mm |
| Video output 1.0Vp-p, 75Ω |
| Electronic shutter Auto |
| S/N ratio Better than 40dB |
| Lens angle 85 degree |
| Operation temperature -20° ~+70° |
| Storage temperature -30° ~+80° |
| Warranty 12 months |
● Avoid hidden dangers
● Avoid reversing accidents
● No longer worry about the rear safety of the vehicle

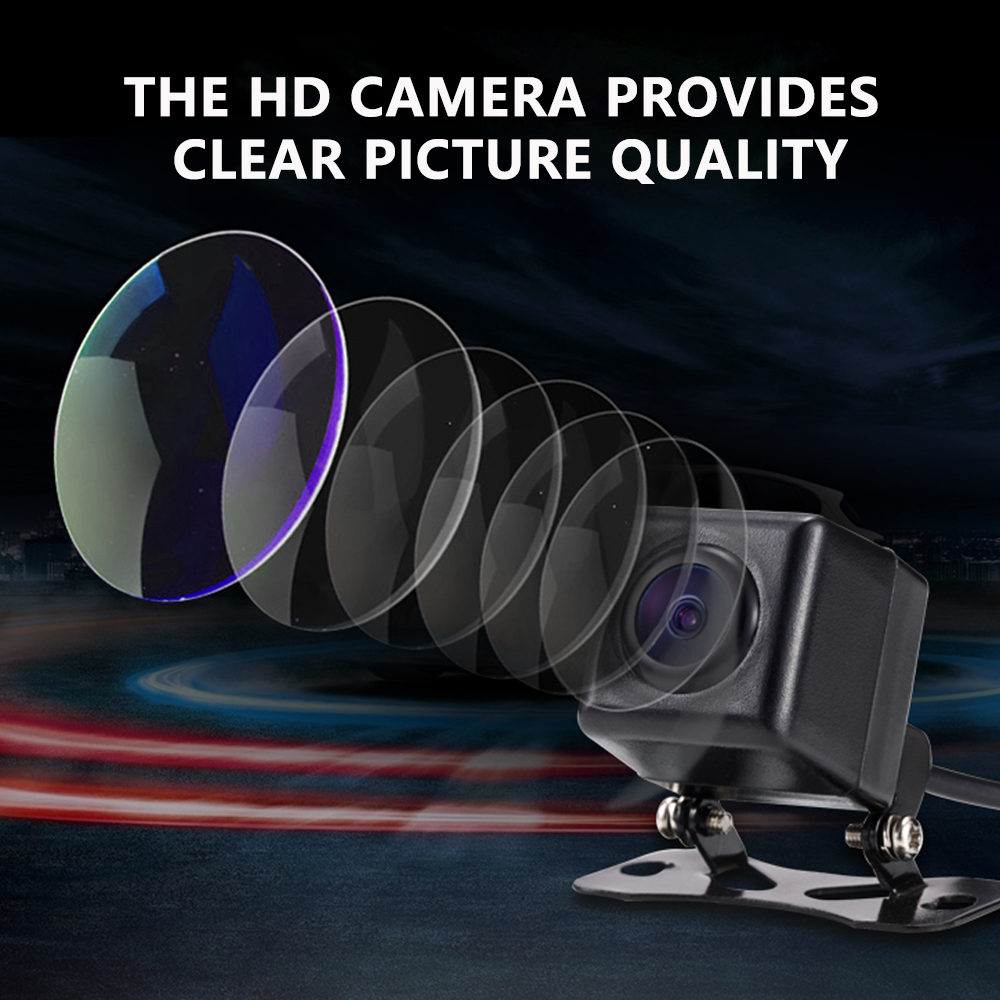

The hd camera provides clear picture quality
Using high-precision glass lenses, even in high or low temperature will not be deformed, and has good light transmittance and sensitivity, presenting a more stable picture quality.

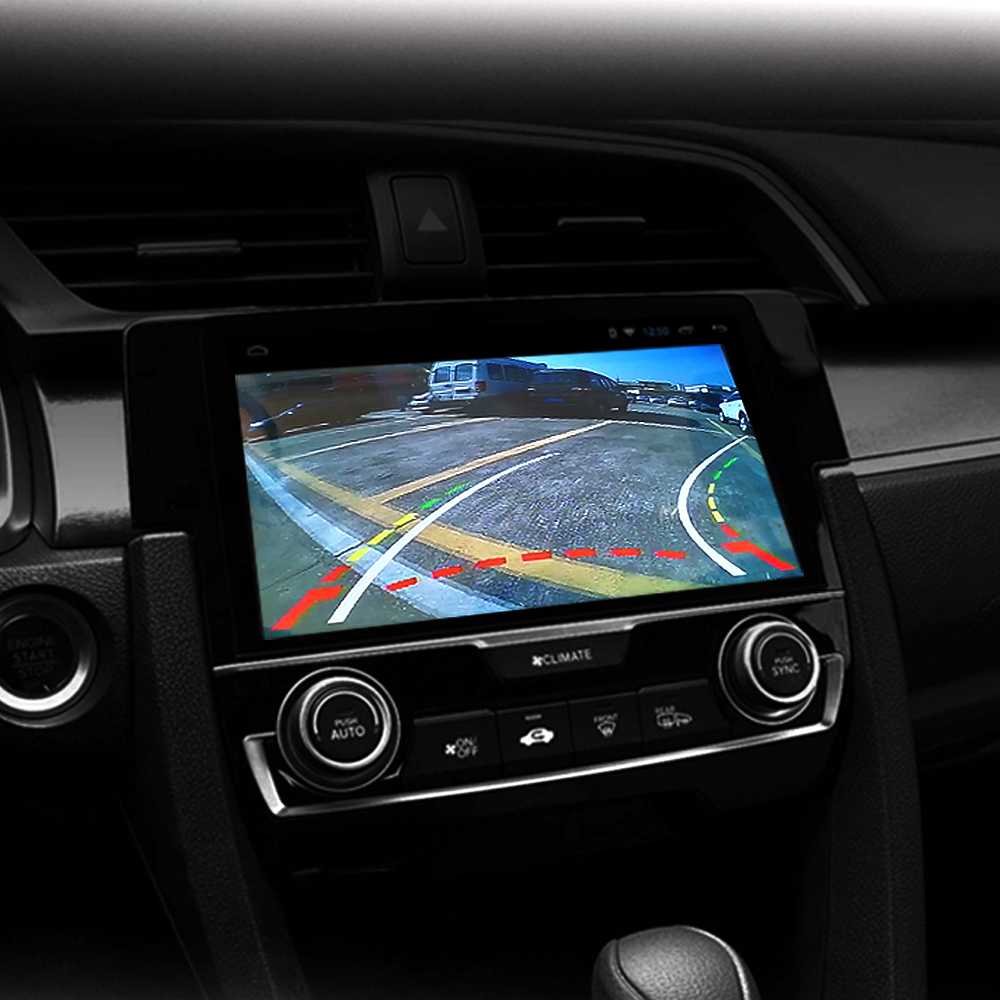

Dynamic trajectory assist
The camera has a built-in dynamic track line, which rotates with the swing of the rear of the car, so as to assist the owner to grasp the reversing direction in time and park easily.
170°wide Angle lens
Optional 170° wide Angle lens, wider field of vision, parking, reversing more safe and convenient.

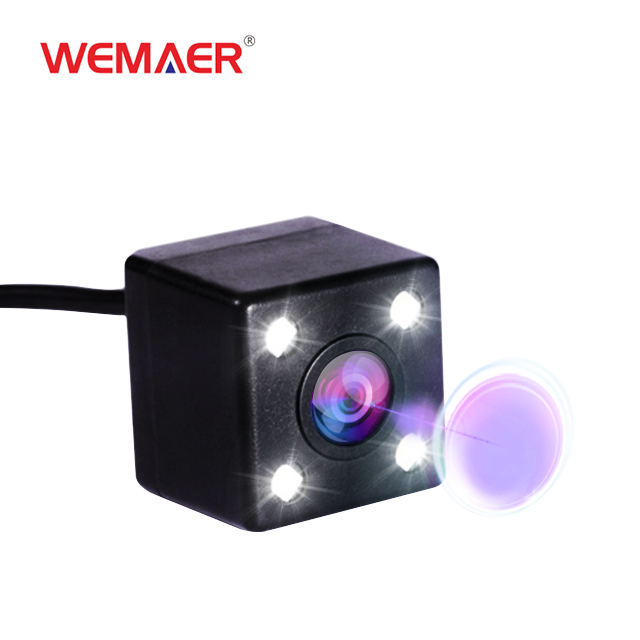

LED configuration is optional
An optional high light LED configuration provides a sharp image even in full darkness.

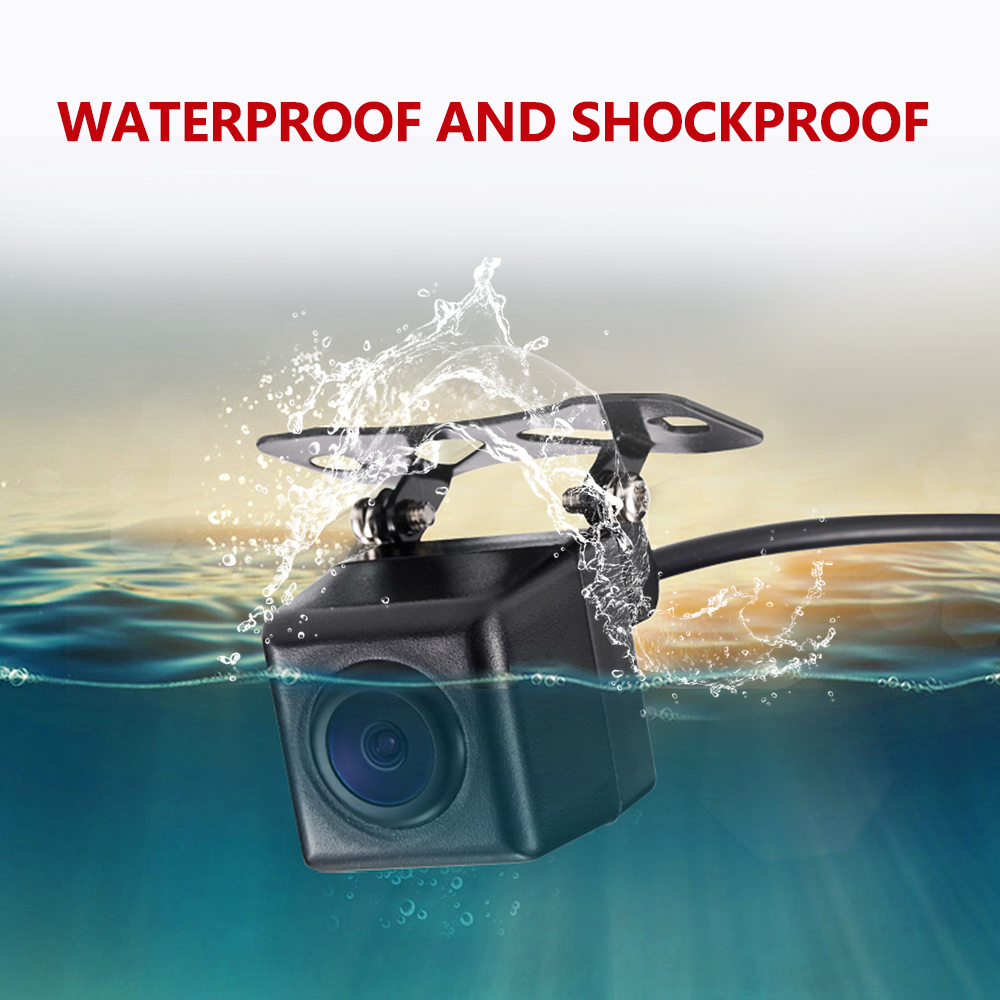

Waterproof and shockproof
Using fine glue filling process, after strict water bubble and vibration test, so that the camera through automatic car washing machine, rain, turbulence and other road conditions, can also work normally.
