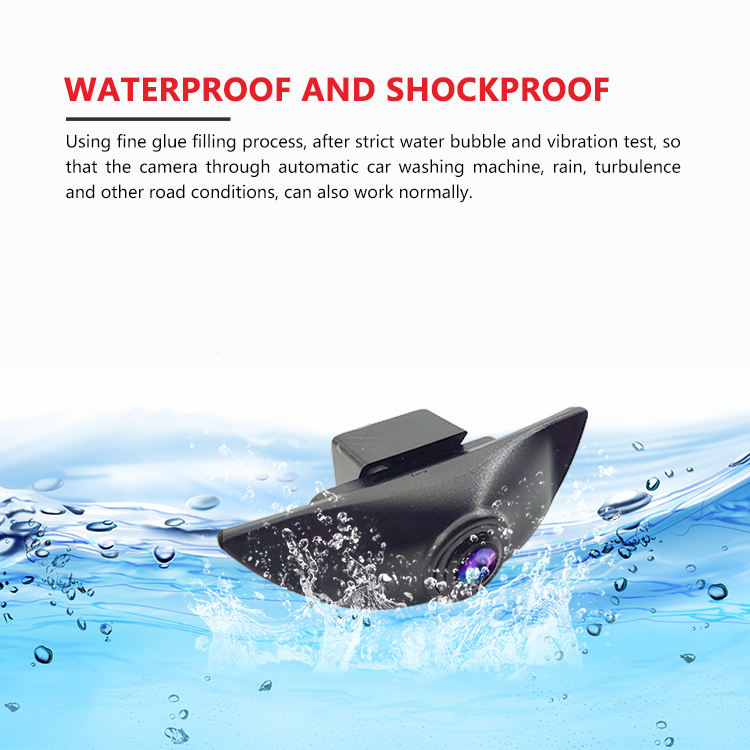

Front Car Camera For Universal Japanese Model
Wemaer
According to the different functional requirements and installation positions of ADAS, car mounted cameras include front view, surround view, rear view, side view, and built-in cameras. The functions of cameras in different positions are different, and they are essential components for achieving autonomous driving.
Front view camera:
Due to the fact that the forward detection process uses basically consistent target image output, in many cases, it is a detection type that cannot change the image size. This results in insufficient detection distance when the image resolution is too low, making it impossible to detect small targets at long distances in advance; When the image resolution is too high, the detected FOV is insufficient to respond in a timely manner to targets that suddenly cut into convenient lanes.
The front view camera is the core camera of ADAS, covering ranging, Object detection, road markings, etc., so the algorithm is complex. Our front view camera can clearly shoot distant objects, which is suitable for high-speed traffic scenes.
Image Sensor | B30 1/3" CMOS | Resolution | 480 TV lines |
TV System: | NTSC/PAL | Sensing area | 6.202*4.101mm |
Sync System | internal | Video output | 1.0Vp-p, 75Ω |
Minimum illumination | 0.1Lux | Electronic shutter | Auto |
White balance | Auto | S/N ratio | Better than >46dB |
IR LEDs | No | Lens angle | 130 degree |
Video color | Colorful | Operation temperature | -20° ~+70° |
Waterproof class | IP68 | Storage temperature | -30° ~+80° |
Effective pixels | 652(H)*582(V) | Warranty | 12 months |
