T7
Wemaer

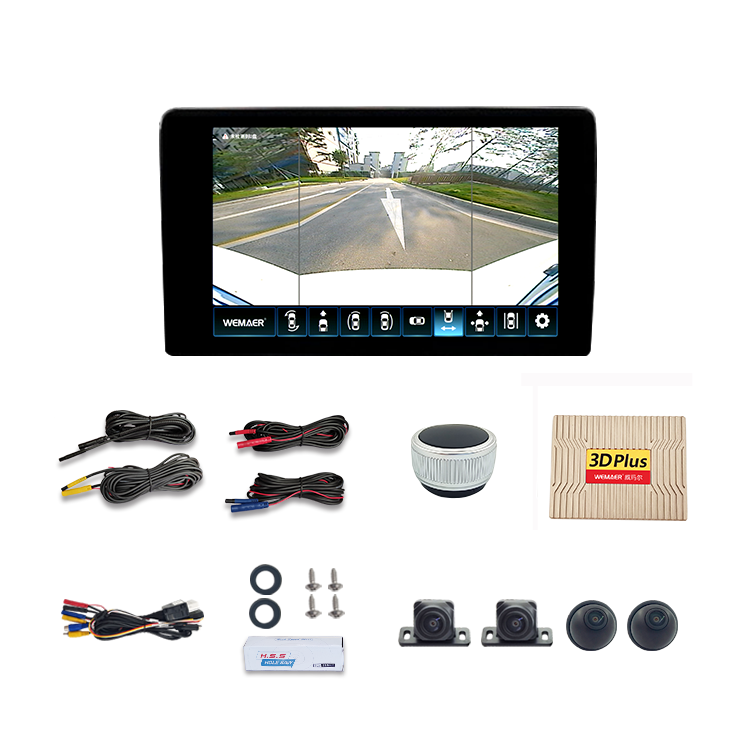

T7 main core, boot 3D surround view, 2D/3D view switching, three-in-one view, view distortion correction, F1.5 large aperture, large wide-angle lens, ultra-clear image quality, multiple output formats, built-in original car track, compatible with original car Radar, original car model, license plate setting, light and door information, four-way driving record, parking monitoring
High class and clearer 360 car camera bird view safe driving assistance system
4.Support multiple signal formats: AHD/VGA/CVBS
| Product specification | ||
| Project | Specifications | |
| Camera | Sensor size | 1/3"Color sensor |
| Signal to noise ratio | >60dB | |
| Minimum illumination | 0.001LUX | |
| Dynamic range | 82dB | |
| Video output | AHD720P | |
| Waterproof level | IP67 | |
| perspective | Vertical 130°， Level 180°- 230° | |
| Working voltage | 3.5-5.5V | |
| Working current | About 140mA | |
| The host | Operating voltage range | 9~16V |
| Working current | <600mA | |
| Standby current | <7mA | |
| Operating temperature range | -20℃〜75℃ | |
| Operating humidity range | 40%〜80% | |
