WEMAER Wifi Separated-type Front & Rear View Digital Streaming 2K Car Camera for Ford Ranger 9.2 Inch Full Screen Mirror DashCam
Spu:
1601727807263
- Overview
- Recommended Products
- OEM-grade front & rear LVDS lossless transmission
- Recording Resolution: Front 2K@30fps + Rear 1080P@60fps (HDR anti-glare suppression)

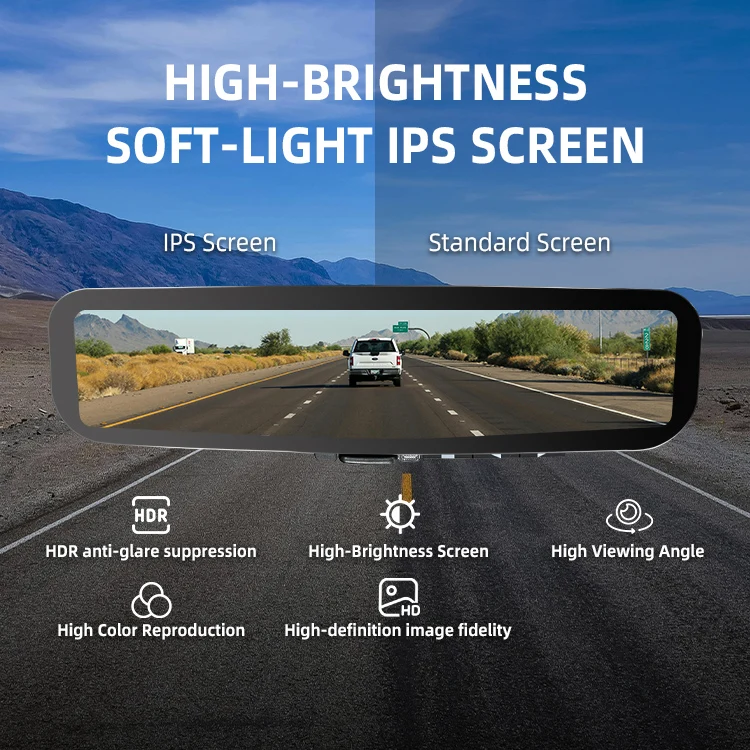

- High-transparency, high-brightness adaptive display, 3000 cd/m²
- Built-in 6-axis G-sensor with Electronic Image Stabilization (EIS)
- Integrated OEM auto-dimming protocol support
- Vehicle-specific plug-and-play power harness (no wire cutting)
- Display Resolution: 1920×1080P
- Low Latency: Front ≤100ms / Rear ≤60ms
- AI Support: Pedestrian, vehicle & traffic light warning / BSD active safety alert
- Supports CarPlay / HiCar / CarLife / CarLink
- Dual-band WiFi (2.4GHz / 5GHz)
- Parking Monitoring: Time-lapse / Collision detection / Sentry mode (with ACC step-down cable)
- EMC & RF compliance testing supported
- 3-second fast boot recording
- Event pre-recording: 10s before + 10s after trigger (driving collision or parking sentry)
- High-transparency multi-point capacitive touchscreen
- Standard Chinese voice wake-up
- GPS or E-DOG support
- Mobile App: Viidure (optional LPR / OTA upgrade)
Recording Specifications |
||
Recording Mode |
Front & Rear LVDS simultaneous recording |
|
Resolution |
Front 2K@30fps + Rear 1080P@60fps |
|
Optional Resolution |
1920×1080@30fps / 1280×720@30fps |
|
Video Format |
H.265 / MP4 |
|
Image Format |
JPEG |
|
Audio Format |
AAC / ADPCM (Built-in 3A) |
|
Camera System |
||
Front Sensor |
OmniVision OV04C10 (1/3") + ELX SN805 ISP |
|
Rear Sensor |

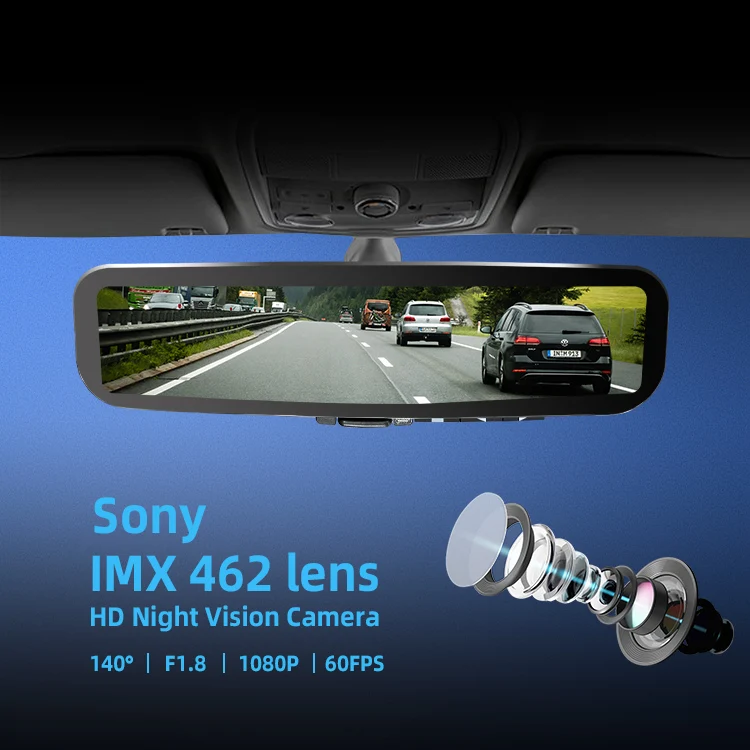

Sony IMX462LQR-C (1/2.8") + ELX SN801 ISP |
|
Front FOV |
Diagonal 140° / Horizontal 104° / Vertical 62° |
|
Rear FOV |
Diagonal 130° / Horizontal 104° / Vertical 62° |
|
Lens Aperture |
F1.8 (Front & Rear) |
|
Lens Rotation |
Up/Down 60°, Left/Right 30° |
|
Display & Touch Panel |
||
Display Size |
8.2''/9.2''/9.6''/9.66'' IPS |
|
Resolution |
1920(H) × RGB 384(V) |
|
Brightness |
2500–3000 cd/m² |
|
Touch Type |
Multi-point capacitive (G+G, 6H hardness) |
|
General Specifications |
||||||
Main Chipset |
Hi3519DV500 |
CPU |
Dual-core ARM Cortex-A55 @1GHz |
|||
Standby Current |
≤3mA |
Resolution |
1920(H) × RGB 384(V) |
|||
Brightness |
2500–3000 cd/m² |
Touch Type |
Multi-point capacitive (G+G, 6H hardness) |
|||
WiFi |
Dual-band 2.4GHz / 5GHz |
Bluetooth |
BT 5.0 / 5.3 |
|||
Working Voltage |
10.8V–16V (Nominal 12V) |
Operating Temp |
-20°C ~ +75°C |
|||
Max Consumption |
1000mA @12V |
Storage Temp |
-40°C ~ +85°C |
|||
Phone Integration |
CarPlay / HiCar / CarLife / Carlink |
|||||
GPS |
Optional GPS + GLONASS or E-DOG |
|||||
Get the Hightlights
Customization Capabilities
Company Overview
Guangzhou Wemaer Electronic Technology Co., Ltd.
was established in 2010, which is a national high-tech enterprise integrating R&D, production, sales and service. Wemaer has the NO.1 production scale of car camera and 360 panoramic driving system in China,and has Experienced R&D team that includes 20+ engineers and 20+ high-end technicist which makes us obtained over 100 related patents.
We not only have our own brand Wemaer, but also support OEM/ODM services inclued logo, package,and deep UI customization,to create your brand for you.

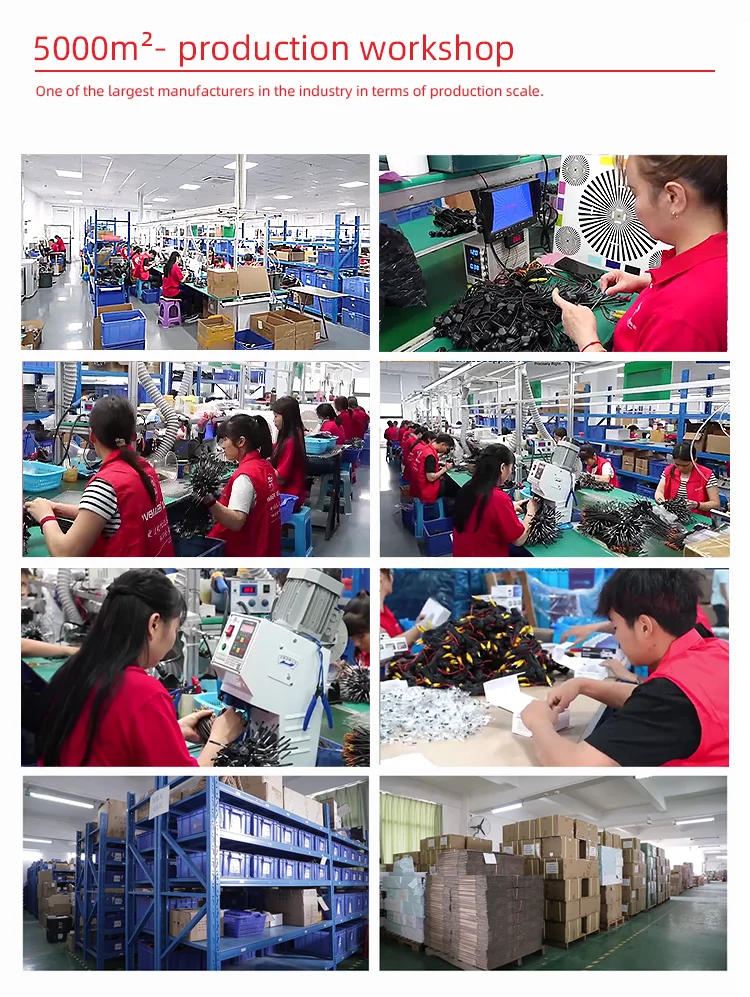

We have industry-leading high precision automation equipment and production process. All our products have undergone 10+ inspection procedures from materials to shipping to ensure quality,and export to 60+ countries and has highly valued and praised by our customers.
We are looking forward to establishing business relationship with you！
was established in 2010, which is a national high-tech enterprise integrating R&D, production, sales and service. Wemaer has the NO.1 production scale of car camera and 360 panoramic driving system in China,and has Experienced R&D team that includes 20+ engineers and 20+ high-end technicist which makes us obtained over 100 related patents.
We not only have our own brand Wemaer, but also support OEM/ODM services inclued logo, package,and deep UI customization,to create your brand for you.
We have industry-leading high precision automation equipment and production process. All our products have undergone 10+ inspection procedures from materials to shipping to ensure quality,and export to 60+ countries and has highly valued and praised by our customers.
We are looking forward to establishing business relationship with you！
Qualification Certificate
Trade Show Participation

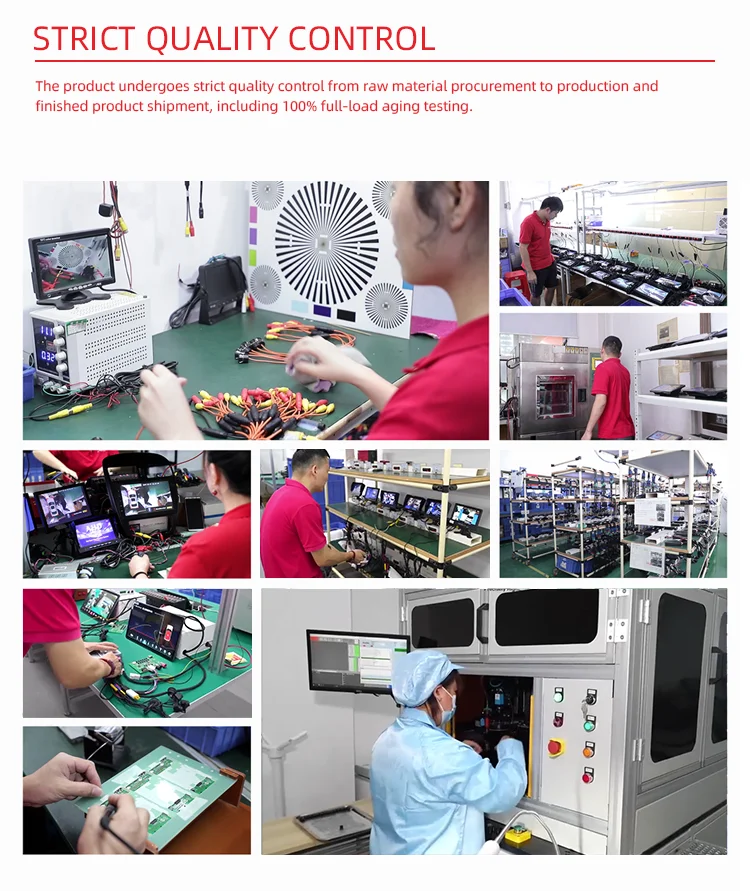

Strict Quality Control
FAQ
Q: Why Choose US?
A: Wemaer - Leading Automotive Camera Solutions Provider * NO.1 production scale of car cameras and 360° AVM driving systems in China. * Compatibility with 99.9% of car models. * Partnered with 30+ car dealers and 5,000+ showrooms. * 20+ experienced engineers & technicians, free installation training. * Our in-house design team can reduce your custom product costs by 30%. * Free Custom Logo on Screen - Even for JUST 1 Unit!.
Q: What Can We Do for You?
A: 1. Free samples (100% sample fee refund).2. Free replacement within 1 year.3. Free new product design services according to your requirements.4. Deep customization of packaging, logo, and UI .5. Recommend relevant hot selling products based on your target markets.6. Assist clients to develop marketing strategies that are in line with local markets.7. Free pictures modification until customer satisfaction.8. Provide container consolidation services to save at least 50% of shipping costs.
Q: How do we ensure product quality?
A: 1. Passed ISO9001 and IATF16949 QMS Certificated.2. Passed SGS certification.3. Product certificates: CE, FCC, RoHS,etc.4. All raw materials have passed IQC(incoming quality control ).5. All the products undergo 10+ inspection processes before shipping.6. Pre-installation testing to prevent issues.7. Production visualization via video calls, images, and live streaming.8. Support third-party inspection.
Q: What's the payment terms you accept?
A: We accept many payment terms: T/T(30% deposit. 70% before shipment). Trade Assurance. 100%-T in advance.
Q: About delivery time?
A: Goods mostly in stock, delivery time is normally 3-10 working days, which depends on models and quantity.
Q: How about the shipping?
A: We do provide international Express door-to door, Airline and Ocean transportation: your can choose the shipping way you prefer, and different shipping way have different shipping cost.
